Kubota GL368
The Kubota GL368 is a tractor produced by Kubota. It is equipped with a 113.3 ci 1.9 L engine. The rated power output is 35.5 hp 26.5 kW. Transmission: 16 forward and reverse. Operating weight: 3197 to 3616 pounds.
Engine Power
35.5 hp
26.5 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
16 forward and reverse
Operating Weight
3197 to 3616 pounds
Kubota GL368 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1993 - 1995
GL SeriesCompact Utility tractor |
|---|---|
1993 - 1995 | |
GL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
GL368 | ROPS |
GL368Q | cab |
Kubota GL368 Engine | |
|---|---|
Kubota 1.9L 4-cyl diesel | |
Fuel tank | 9.25 gal
35.0 L |
Engine details ...  | |
Kubota GL368 Power | |
|---|---|
Engine | 35.5 hp
26.5 kW |
PTO (claimed) | 31.7 hp
23.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 1907 lbs
865 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 544/806/1252 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Weight | 3197 to 3616 pounds |
Front tire | 8-16 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 113.3 ci / 1.9 L Diesel
Manufacturer | Kubota V1903 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 113.3 ci
1.9 L |
Bore/Stroke | 3.1x3.6 inches
79 x 91 mm |
Power | 35.5 hp
26.5 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |
Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |

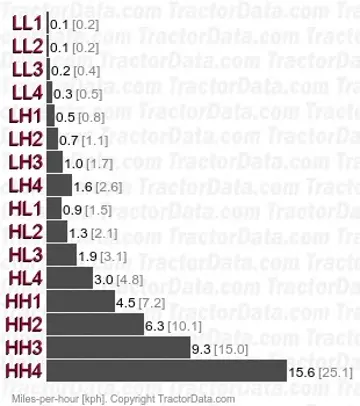

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Dimensions
Kubota GL368 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 12.4-28 |
Dimensions | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Length | 130.9 inches
332 cm |
Width | 59.1 inches
150 cm |
Height (ROPS) | 85.6 inches
217 cm |
Height (cab) | 90.2 inches
229 cm |
ROPS Weight | 3197 lbs
1450 kg |
Cab Weight | 3616 lbs
1640 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 46.5 to 58 inches
118 to 147 cm |
