Kubota KL36

The Kubota KL36 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 35.5 hp 26.5 kW. Transmission: 24 forward and 16 reverse. Operating weight: 3318 to 3715 pounds.

Overview

	1999 - 2005 KL SeriesCompact Utility tractor
1999 - 2005
KL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota KL36 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

Kubota KL36 Power
Engine	35.5 hp 26.5 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	533@2700
	752@2700
	931@2700
	1241@2700
	-931@2700

Dimensions & Tires
Wheelbase	75.2 inches 191 cm
Weight	3318 to 3715 pounds
Front tire	8-18
Rear tire	12.4-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota D1503
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.27x3.64 inches 83 x 92 mm
Power	35.5 hp 26.5 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed
24-speed

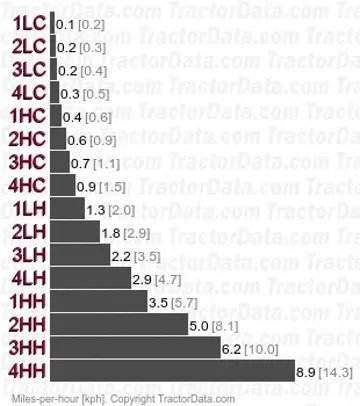

Transmission — 16 forward and reverse

Gears	16 forward and reverse
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.
Transmission
Gears	24 forward and 16 reverse
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.

Dimensions

Kubota KL36 Tires
Standard tires (ag)	Front: 8-18. Rear: 12.4-28

Dimensions
Wheelbase	75.2 inches 191 cm
Length	136.6 inches 346 cm
Width	57.9 inches 147 cm
Height (ROPS)	78 inches 198 cm
Height (cab)	78.5 inches 199 cm
ROPS Weight	3318 lbs 1505 kg
Cab Weight	3715 lbs 1685 kg
Ground clearance	14.4 inches 36 cm
Front tread	46.5 inches 118 cm
Rear tread	44.9 to 56.3 inches 114 to 143 cm
