Kubota M110
The Kubota M110 is a tractor produced by Kubota. It is equipped with a 356 ci 5.8 L engine. The rated power output is 110 hp 82.0 kW. Transmission: 24 forward and reverse. Operating weight: 8598 to 9259 pounds.
Engine Power
110 hp
82.0 kW
Fuel & Capacities
39.6 gal
149.9 L
Transmission
24 forward and reverse
Operating Weight
8598 to 9259 pounds
Kubota M110 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1998 - 2004
M SeriesUtility tractor |
|---|---|
1998 - 2004 | |
M Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M110 Engine | |
|---|---|
Kubota 5.8L 5-cyl diesel | |
Engine details ...  |
Kubota M110 Power | |
|---|---|
Engine | 110 hp
82.0 kW |
PTO (claimed) | 88 hp
65.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 39.6 gal
149.9 L |
Hydraulic system | 14.5 gal
54.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 14.5 gal
54.9 L |
Valves | 2 |
Pump flow | 20.6 gpm
78.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 5200 lbs
2358 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2035 |
1000@2210 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 98.2 inches
249 cm |
4WD Wheelbase | 98.9 inches
251 cm |
Weight | 8598 to 9259 pounds |
Front tire | 10.00-16 |
2WD Rear tire | 18.4R-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1999 Products published by Kubota | |
M-110/M-120 published in 1998, by Kubota | |
Product Guide: M-Series Advanced Tractors published in 1998, by Kubota | |
Product Guide: M-110 & M-120 published in 1999, by Kubota |
Engine
Engine Detail — 356 ci / 5.8 L Diesel
Manufacturer | Kubota F5802 |
Configuration | turbocharged diesel, 5-cylinder, liquid-cooled |
Displacement | 356 ci
5.8 L |
Bore/Stroke | 4.291x4.922 inches
109 x 125 mm |
Power | 110 hp
82.0 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Torque | 311 lb-ft
421.7 Nm |
Torque RPM | 1300 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 14.4 qts
13.6 L |
Transmission
Transmission options | |
|---|---|
16-speed eight-speed power shift | |
24-speed creeper |

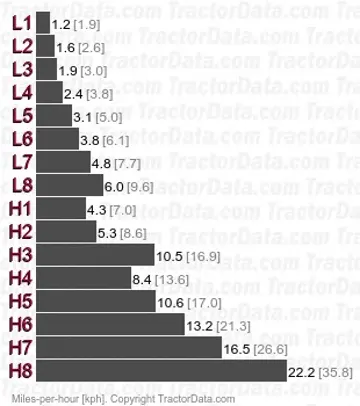

Transmission — 16 forward and reverse eight-speed power shift
Type | eight-speed power shift |
Gears | 16 forward and reverse |
Clutch | electro-hydraulic wet disc |
Eight-speed push-button power shift with two ranges (low/high). Push-button clutch button for range shifts. Electro-hydraulic power shuttle. | |
With 18.4-38 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 24 forward and reverse |
Dimensions
Kubota M110 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 10.00-16. Rear: 18.4R-34 |
4WD Standard tires (ag) | Front: 13.6-24. Rear: 18.4R-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 98.2 inches
249 cm |
4WD Wheelbase | 98.9 inches
251 cm |
Length | 166.3 inches
422 cm |
Width | 85.8 inches
217 cm |
Height (cab) | 105.3 inches
267 cm |
2WD Weight | 8598 lbs
3900 kg |
4WD Weight | 9259 lbs
4199 kg |
Clearance (front axle) | 23.2 inches
58 cm |
Attachments
Attachment overview | |
|---|---|
Kubota LA1301 loader | |
Kubota LA1601 loader |
