Kubota M6030

The Kubota M6030 is a tractor produced by Kubota. It is equipped with a 196.4 ci 3.2 L engine. The rated power output is 61 hp 45.5 kW. Transmission: 16 forward and 4 reverse. Operating weight: 4409 to 5269 pounds.

Overview

	1986 - 1998 M30 SeriesUtility tractor
1986 - 1998
M30 Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Variants
M6030DT	4WD

Kubota M6030 Engine
Kubota 3.2L 3-cyl diesel
Engine details ...

Kubota M6030 Transmission
16-speed
Transmission details ...

Kubota M6030 Power
Engine	61 hp 45.5 kW
Drawbar (claimed)	48.1 hp 35.9 kW
PTO (claimed)	57 hp 42.5 kW
Drawbar (tested)	48.28 hp 36.0 kW
PTO (tested)	57.74 hp 43.1 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	standard
Power steering
Differential mechanical wet disc brakes
Two-post ROPS.

Capacity
Fuel	16.9 gal 64.0 L
2WD Hydraulic system	12.7 gal 48.1 L
4WD Hydraulic system	14.9 gal 56.4 L

Hydraulics
Type	open center
2WD Capacity	12.7 gal 48.1 L
4WD Capacity	14.9 gal 56.4 L
Pressure	2630 psi 181.3 bar
Valves	1
Total flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at ends)	3,968 lbs 1799 kg
Rear lift (at 24"/610mm)	3,307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	79.4 inches 201 cm
Weight	4409 to 5269 pounds
Front tire	6.50-16
2WD Rear tire	16.9-28
Full dimensions and tires ...

References
Front Loaders published in 1988, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota*
Product Catalog published in 1990, by Kubota
M30 Series - Utility/Agri/Low Profile published in 1986, by Kubota
M30 Series - Utility-Agri/Low Profile/Narrow/Mudder published in 1991, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 196.4 ci / 3.2 L Diesel

Manufacturer	Kubota D3200
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	196.4 ci 3.2 L
Bore/Stroke	4.29x4.53 inches 109 x 115 mm
Power	61 hp 45.5 kW
Air cleaner	dual dry element
Compression	17:1
Rated RPM	2400
Starter volts	12
2WD Oil capacity	10.4 qts 9.8 L
4WD Oil capacity	12.2 qts 11.5 L
Coolant capacity	12.3 qts 11.6 L

Transmission

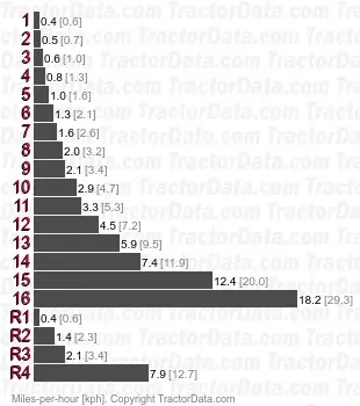

Transmission — 16 forward and 4 reverse

Gears	16 forward and 4 reverse
2WD Oil capacity	50.7 qts 48.0 L
4WD Oil capacity	59.7 qts 56.5 L

Dimensions

Kubota M6030 Tires
2WD Standard tires (ag)	Front: 6.50-16. Rear: 16.9-28
4WD Standard tires (ag)	Front: 9.5-22. Rear: 16.9-28
	Front: 6.50-16. Rear: 14.9-24 (2WD Low Profile)
	Front: 9.5-16. Rear: 13.6-24 (4WD Low Profile)
2WD Optional tires (ag)	Front: 6.50-16. Rear: 16.9-30
4WD Optional tires (ag)	Front: 9.5-24. Rear: 16.9-30
	Front: 8.00-16. Rear: 18.4-16 (2WD Low Profile)
Ag front	6.50-16
Ag rear	16.9-28

Dimensions
Wheelbase	79.4 inches 201 cm
2WD Length	135 inches 342 cm
4WD Length	138 inches 350 cm
Width	78.8 inches 200 cm
	74.9 inches (Low Profile) 190 cm
2WD Weight	4409 lbs 1999 kg
4WD Weight	5269 lbs 2390 kg
2WD Ground clearance	19.3 inches 49 cm
4WD Ground clearance	17.3 inches 43 cm
	15.9 inches (2WD Low Profile) 40 cm
	14.4 inches (4WD Low Profile) 36 cm
2WD Front tread	55.1 to 78.7 inches 139 to 199 cm
4WD Front tread	52.4 to 59.8 inches 133 to 151 cm
Rear tread	62.9 to 75.6 inches 159 to 192 cm

Kubota M6030 Height
Hood	56.2 inches 142 cm
	53.3 inches (Low Profile) 135 cm
Exhaust	88.3 inches 224 cm

Tests

Nebraska Tractor Test 1596
Diesel 16-speed 4WD May 14 - 28, 1986 Link: Nebraska Tractor Test 1596 file
PTO performance
Power at rated engine speed	57.74 hp 43.1 kW
Fuel use	3.6 gal/hour 13.6 l/hour
Power at rated PTO speed	53.57 hp 39.9 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Drawbar performance
Max power	48.28 hp 36.0 kW
Fuel use	3.6 gal/hour 13.6 l/hour
Max pull	7,052 lbs 3198 kg

Attachments

Attachment overview
Kubota M1000 loader
Kubota M1870A loader
