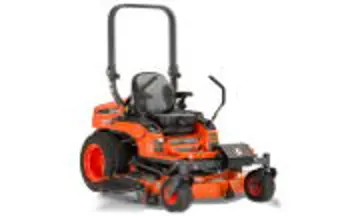

Kubota ZD1011
The Kubota ZD1011 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 778 cc 47.5 ci engine. The listed engine power is Diesel (gross): 19.3 hp / 14.4 kW. Transmission: infinite forward and reverse. Operating weight: 1323 lbs*Weight with 54-inch mower 600 kg.
Overview
![]() | 2016 -
ZD1000 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1000 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1000 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Variants | |
|---|---|
ZD1011-48 | 48-inch deck |
ZD1011-54 | 54-inch deck |
Kubota ZD1011 Engine | |
|---|---|
19.3HP Kubota 778cc 3-cyl diesel | |
Fuel tank | 6.1 gal
23.1 L |
Engine details ... | |
Kubota ZD1011 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | hydraulic wet disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 54.3 inches
137 cm |
Weight | 1323 lbs
600 kg |
Front tire | 13x5.0-6 |
Rear tire | 24x9.5-14 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 14 |
Charging volts | 14 |
Battery CCA | 430 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
ZD Series published in 2015, by Kubota | |
ZD Series published in 2019, by Kubota |
Engine
![]() | 2016 -
ZD1000 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1000 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1000 Series | |
Zero-turn mower |
Engine Detail — 778 cc / 47.5 ci Diesel
Manufacturer | Kubota D782 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 778 cc
47.5 ci |
Bore/Stroke | 2.638x2.898 inches
67 x 74 mm |
Power (gross) | 19.3 hp
14.4 kW |
Rated RPM | 3200 |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | 2016 -
ZD1000 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1000 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1000 Series | |
Zero-turn mower |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
![]() | 2016 -
ZD1000 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1000 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1000 Series | |
Zero-turn mower |
Kubota ZD1011 Tires | |
|---|---|
Lawn/turf front | 13x5.0-6 |
Lawn/turf rear | 24x9.5-14 |
Dimensions | |
|---|---|
Wheelbase | 54.3 inches
137 cm |
Length | 87.8 inches
223 cm |
Width | 47.7 inches
121 cm |
Height (ROPS) | 74.4 inches
188 cm |
56.3 inches*With ROPS folded.
143 cm | |
Weight | 1323 lbs*Weight with 54-inch mower
600 kg |
Front tread | 35 inches
88 cm |
Rear tread | 36.6 inches
92 cm |
Attachments
![]() | 2016 -
ZD1000 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1000 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1000 Series | |
Zero-turn mower |
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota ZD1011 based on its 19.3 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZD1011.
Estimated Continuous Field Runtime: 6.1 hrs
Approximately 6.1 hours of continuous field operation at ~75% rated power on a full tank (6.1 gal / 23.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota ZD1011 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZD1011.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota ZD1011 against same-era industry alternatives in the same horsepower class.
Kubota ZD1011
