Kubota Z251BR
The Kubota Z251BR is a tractor produced by Kubota Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (listed): 25 hp / 18.6 kW. Transmission: Hydro-Gear ZT3100. Operating weight: 749 lbs 339 kg.
Overview
![]() | 2019 -
Z200 SeriesZero-turn mower |
|---|---|
2019 - | |
Z200 Series | |
Zero-turn mower | |
2019 - | |
|---|---|
Z200 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Original price was $5,199 in 2021 | |
Kubota Z251BR Engine | |
|---|---|
25HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 4.3 gal
16.3 L |
Engine details ... | |
Kubota Z251BR Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post fixed ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 749 lbs
339 kg |
Front tire | 11x4-5 |
Rear tire | 22x10-14 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery CCA | 300 |
Battery volts | 12 |
Engine
![]() | 2019 -
Z200 SeriesZero-turn mower |
|---|---|
2019 - | |
Z200 Series | |
Zero-turn mower | |
2019 - | |
|---|---|
Z200 Series | |
Zero-turn mower |
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Briggs & Stratton 44T9 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 3.12x2.89 inches
79 x 73 mm |
Power | 25 hp
18.6 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
![]() | 2019 -
Z200 SeriesZero-turn mower |
|---|---|
2019 - | |
Z200 Series | |
Zero-turn mower | |
2019 - | |
|---|---|
Z200 Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT3100
Transmission | Hydro-Gear ZT3100 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.4 qts
2.3 L |
![]() | |
Dimensions
![]() | 2019 -
Z200 SeriesZero-turn mower |
|---|---|
2019 - | |
Z200 Series | |
Zero-turn mower | |
2019 - | |
|---|---|
Z200 Series | |
Zero-turn mower |
Kubota Z251BR Tires | |
|---|---|
Lawn/turf front | 11x4-5 |
Lawn/turf rear | 22x10-14 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 76.4 inches
194 cm |
Width | 47.5 inches
120 cm |
Height (ROPS) | 65 inches
165 cm |
Weight | 749 lbs
339 kg |
Front tread | 31.3 inches
79 cm |
Rear tread | 37.6 inches
95 cm |
Attachments
![]() | 2019 -
Z200 SeriesZero-turn mower |
|---|---|
2019 - | |
Z200 Series | |
Zero-turn mower | |
2019 - | |
|---|---|
Z200 Series | |
Zero-turn mower |
54" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK54P-127ZA |
3-blade with manual lift | |
Cutting width | 54 inches
137 cm |
Overall width | 67.3 inches
170 cm |
Cut height | 1.5 to 4.25 inch
3 to 10 cm |

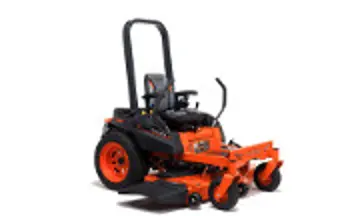

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota Z251BR based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z251BR.
Estimated Continuous Field Runtime: 3.3 hrs
Approximately 3.3 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.3 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota Z251BR Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z251BR.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota Z251BR against same-era industry alternatives in the same horsepower class.
