Kubota Z725

The Kubota Z725 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 747 cc 45.6 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Parker Torqpact GT14. Operating weight: 1212.5 lbs 549 kg.

Engine Power
Gasoline (gross): 25 hp / 18.6 kW
Fuel & Capacities
11.6 gal 43.9 L
Transmission
Parker Torqpact GT14
Operating Weight
1212.5 lbs 549 kg

Overview

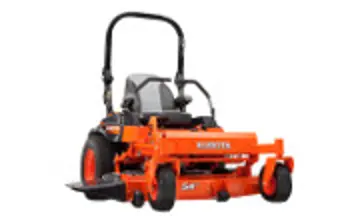

Kubota Z725 tractor photo
2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower
2014 -
Z700 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price
$9,299 (2015 )
$9,499 (2021 )
Kubota Z725 Engine
25HP Kohler 747cc 2-cyl gasoline
Fuel tank
11.6 gal 43.9 L
Engine details ...
Kubota Z725 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Drum discs brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric dry disc
Dimensions & Tires
Wheelbase
50.9 inches 129 cm
Weight
1212.5 lbs 549 kg
Front tire
13x6.5-6
Rear tire
24x12-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
300
Battery volts
12
References
Z725 references literature
Z700 Series published in 2014, by Kubota
Z700 Series published in 2018, by Kubota

Engine

Kubota Z725 tractor photo
2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower
2014 -
Z700 Series
Zero-turn mower

Engine Detail — 747 cc / 45.6 ci Gasoline

Manufacturer
Kohler CV742
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
The engine is listed in Kubota advertising literature as a GH740V.
Displacement
747 cc 45.6 ci
Bore/Stroke
3.27x2.72 inches 83 x 69 mm
Power (gross)
25 hp 18.6 kW
Fuel system
carburetor
Rated RPM
3600
Starter
electric
Starter volts
12
Oil capacity
1.9 qts 1.8 L

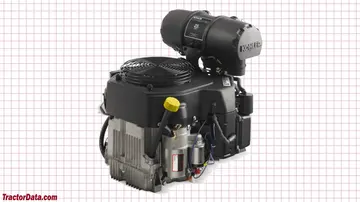

Kubota Z725 Engine
Kubota Z725 engine image

Transmission

Kubota Z725 tractor photo
2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower
2014 -
Z700 Series
Zero-turn mower

Transmission — Parker Torqpact GT14

Transmission
Parker Torqpact GT14
Type
hydrostatic
Gears
infinite forward and reverse
Oil capacity
3.5 qts 3.3 L
Z725 Torqpact GT14 hydrostatic speeds

Dimensions

Kubota Z725 tractor photo
2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower
2014 -
Z700 Series
Zero-turn mower
Kubota Z725 Tires
Lawn/turf front
13x6.5-6
Lawn/turf rear
24x12-12
Dimensions
Wheelbase
50.9 inches 129 cm
Length
83.9 inches 213 cm
Width
54.7 inches 138 cm
Height (ROPS)
69.9 inches 177 cm
Height (Folded ROPS)
48.3 inches 122 cm
Weight
1212.5 lbs 549 kg
Front tread
37.6 inches 95 cm
Rear tread
42.6 inches 108 cm

Attachments

Kubota Z725 tractor photo
2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower
2014 -
Z700 Series
Zero-turn mower
60" Mower deck
Type
mid-mount Kubota RCK60P-725Z
3-blade
Cutting width
60 inches 152 cm
Overall width
73.8 inches 187 cm
Cut height
1 to 5 inch 2 to 12 cm

Photos

Kubota Z725 tractor photo

Kubota Z725 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota Z725 based on its 25 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z725.

Estimated Continuous Field Runtime: 8.9 hrs

Approximately 8.9 hours of continuous field operation at ~75% rated power on a full tank (11.6 gal / 43.9 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota Z725 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z725.

Converted Equivalents:

Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
