Kubota ZD21

The Kubota ZD21 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 778 cc 47.5 ci engine. The listed engine power is Diesel (gross): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 1393 lbs 631 kg.

Overview

	2001 - 2006 ZD SeriesZero-turn mower ZD Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower

Kubota ZD21 Engine
21HP Kubota 778cc 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Kubota ZD21 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent

Dimensions & Tires
Wheelbase	49.2 inches 124 cm
Weight	1393 lbs 631 kg
Front tire	15x6.0-6
Rear tire	24x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	450
Battery volts	12

Engine

Engine Detail — 778 cc / 47.5 ci Diesel

Manufacturer	Kubota D782
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	778 cc 47.5 ci
Bore/Stroke	2.638x2.898 inches 67 x 74 mm
Power (gross)	21 hp 15.7 kW
Rated RPM	3200
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota ZD21 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	24x12-12

Dimensions
Wheelbase	49.2 inches 124 cm
Length	80.3 inches 203 cm
Width	57.3 inches 145 cm
Height (steering wheel)	45.3 inches 115 cm
Height (ROPS)	75.2 inches 191 cm
Weight	1393 lbs 631 kg
Front tread	38.3 inches 97 cm
Rear tread	42.5 inches 107 cm

Attachments

60" Mower deck
Type	mid-mount Kubota RCK60-21Z
	3-blade
Cutting width	60 inches 152 cm
Overall width	74 inches 187 cm
Cut height	1 to 5 inch 2 to 12 cm

Photos

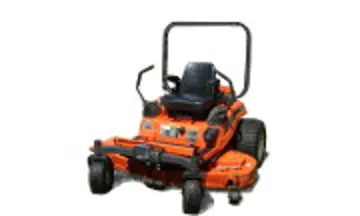

Kubota ZD21
