Kubota ZD221

The Kubota ZD221 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 778 cc 47.5 ci engine. The listed engine power is Diesel (gross): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 124 lbs (48-inch) 56 kg.

Overview

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower
Original price	$11,659 ( 48 )
	$11,863 ( 54 )

Kubota ZD221 Engine
21HP Kubota 778cc 3-cyl diesel
Fuel tank	6.1 gal 23.1 L
Engine details ...

Kubota ZD221 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Wet discs brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	hydraulic wet disc

Dimensions & Tires
Wheelbase	51 inches 129 cm
Weight	124 to 1245 pounds
Front tire	13x5.0-6
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	14
Charging volts	14
Battery CCA	475
Battery volts	12

References
Z200/Z300 Series published in 2016, by Kubota

Engine

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Engine Detail — 778 cc / 47.5 ci Diesel

Manufacturer	Kubota D782-E3-ZD-1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled horizontal-shaft inline
Displacement	778 cc 47.5 ci
Bore/Stroke	2.638x2.898 inches 67 x 74 mm
Power (gross)	21 hp 15.7 kW
Rated RPM	3200
Starter	electric
Starter volts	12
Oil capacity	3.7 qts 3.5 L
Coolant capacity	1.5 qts 1.4 L

Transmission

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.9 qts 7.5 L

Dimensions

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Kubota ZD221 Tires
Lawn/turf front	13x5.0-6
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	51 inches 129 cm
Length	83.9 inches 213 cm
Width	47.7 inches 121 cm
Height (ROPS)	69.9 inches 177 cm
	52.8 inches (folded) 134 cm
Weight	124 lbs (48-inch) 56 kg
	1245 lbs (54-inch) 564 kg
Front tread	34.3 inches 87 cm
Rear tread	36.6 inches 92 cm

Attachments

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck

Photos

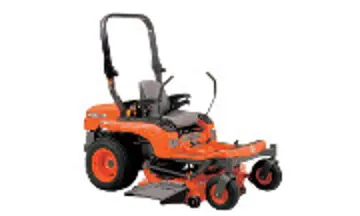

Kubota ZD221 tractor photo
