Kubota ZG20

The Kubota ZG20 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Operating weight: 180.8 lbs 82 kg.

Overview

	2003 - 2007 ZG SeriesZero-turn mower ZG Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower

Kubota ZG20 Engine
20HP Kubota 624cc 2-cyl gasoline
Fuel tank	6.1 gal 23.1 L
Engine details ...

Kubota ZG20 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Wet disc brakes
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent
Mid PTO Type	Kubota 10-tooth

Dimensions & Tires
Wheelbase	46.7 inches 118 cm
Weight	1058 lbs 479 kg
Front tire	13x5.0-6
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	285
Battery volts	12
Battery Group	U1L-9

References
Zero-Turn Mower ZG published in 2003, by Kubota

Engine

Engine Detail — 624 cc / 38.1 ci Gasoline

Manufacturer	Kubota GH630H
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	20 hp 14.9 kW
Air cleaner	foam
Compression	8.5:1
Rated RPM	3200
Torque	32.6 lb-ft 44.2 Nm
Torque RPM	2600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug	Champion 3071

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.9 qts 7.5 L

Dimensions

Kubota ZG20 Tires
Lawn/turf front	13x5.0-6
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	46.7 inches 118 cm
Length	76.8 inches 195 cm
Width	60.4 inches 153 cm
Height (ROPS)	69.8 inches 177 cm
Height (Folded ROPS)	51.9 inches 131 cm
Weight	1058 lbs 479 kg
Front tread	33.9 inches 86 cm
Rear tread	36.6 inches 92 cm

Attachments

48" Mower deck
Type	mid-mount Kubota RCK48P-20ZG
	3-blade
Cutting width	48 inches 121 cm
Weight	180.8 lbs 82 kg
Overall width	61.1 inches 155 cm
Cut height	1 to 5 inch 2 to 12 cm

Photos

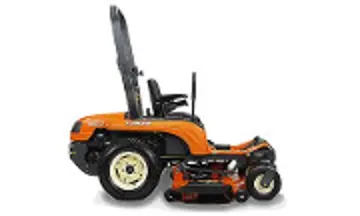

Kubota ZG20
