Mahindra 3325
The Mahindra 3325 is a tractor produced by Mahindra. It is equipped with a 115 ci 1.9 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: 8 forward and 2 reverse. Operating weight: 3990 lbs 1809 kg.
Engine Power
Diesel (listed): 35 hp / 26.1 kW
Fuel & Capacities
Diesel
Transmission
8 forward and 2 reverse
Operating Weight
3990 lbs
1809 kg
Overview
 | 2004 - 2008
25 SeriesUtility tractor
25 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Mahindra |
Utility tractor | |
Built in Maharashtra, India | |
Original price was $10,829 in 2008 | |
Mahindra 3325 Engine | |
|---|---|
Mahindra 1.9L 3-cyl diesel | |
Engine details ...  |
Mahindra 3325 Transmission | |
|---|---|
8-speed sliding mesh | |
Transmission details ...  |
Mahindra 3325 Power | |
|---|---|
Engine | 35 hp
26.1 kW |
PTO (claimed) | 30 hp
22.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual recirculating ball |
Dry disc brakes | |
Two-post folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 8.3 gpm
31.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift | 3525 lbs
1598 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Clutch | over-running |
Rear PTO Type | 540 |
Engine RPM | 540@1980 |
Dimensions & Tires | |
|---|---|
Weight | 3990 lbs
1809 kg |
Front tire | 6x16 |
Rear tire | 12.4x28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 36 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 96 |
Engine
Engine Detail — 115 ci / 1.9 L Diesel
Manufacturer | Mahindra MDI1895E |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 115 ci
1.9 L |
Power | 35 hp
26.1 kW |
Compression | 19.4:1 |
Rated RPM | 2300 |
Starter volts | 12 |
Transmission
Transmission — 8 forward and 2 reverse sliding mesh
Type | sliding mesh |
Gears | 8 forward and 2 reverse |
Dimensions
Mahindra 3325 Tires | |
|---|---|
Ag front | 6x16 |
Ag rear | 12.4x28 |
Dimensions | |
|---|---|
Length | 111.2 inches
282 cm |
Width | 69.4 inches
176 cm |
Weight | 3990 lbs
1809 kg |
Photos

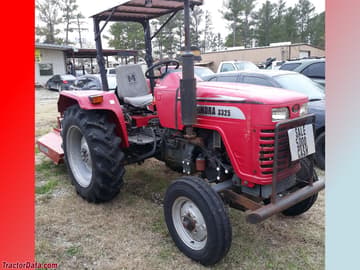

Mahindra 3325
Mahindra 3325
Mahindra 3325
Recommended Implements & Sizing Guide
Engineering recommendations for Mahindra 3325 based on its 35 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 3325.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mahindra 3325 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 3325.
Converted Equivalents:
Horsepower (HP)35 hp
Kilowatts (kW)26.1 kW
Metric Horsepower (PS / CV)35.5 PS
