Mahindra 350

The Mahindra 350 is a tractor produced by Mahindra. It is equipped with a 144 ci 2.4 L engine. The rated power output is 35 hp 26.1 kW. Transmission: 8 forward and 2 reverse. Operating weight: 3,594 lbs 1630 kg.

Overview

	Utility tractor	Utility tractor

Production
Manufacturer	Mahindra
Utility tractor

Mahindra 350 Engine
Mahindra 2.4L 4-cyl diesel
Engine details ...

Mahindra 350 Transmission
8-speed
Transmission details ...

Mahindra 350 Power
Engine	35 hp 26.1 kW

Mechanical
Two-wheel drive
Differential lock	mechanical
Steering	manual
Disc brakes
Open operator station.

Capacity
Fuel	10.2 gal 38.6 L
Hydraulic system	3 gal 11.4 L

Hydraulics
Type	live pump
Capacity	3 gal 11.4 L

Tractor hitch
Rear Type	2/1
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Weight	3,594 lbs 1630 kg
Front tire	5.50x16
Rear tire	11.2/10.00x28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	88

Engine

Engine Detail — 144 ci / 2.4 L Diesel

Manufacturer	Mahindra BD-144-A
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	144 ci 2.4 L
Bore/Stroke	3.375x4.00 inches 86 x 102 mm
Power	35 hp 26.1 kW
Pre-heating	glow plugs
Rated RPM	1900
Torque	108.5 lb-ft 147.1 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	7.8 qts 7.4 L
Coolant capacity	11.9 qts 11.3 L

Transmission

Transmission — 8 forward and 2 reverse

Gears	8 forward and 2 reverse
Clutch	254mm dry disc
Oil capacity	19.9 qts 18.8 L

Dimensions

Mahindra 350 Tires
Ag front	5.50x16
	6.00x16
Ag rear	11.2/10.00x28
	12.4/11.00x28

Dimensions
Weight	3,594 lbs 1630 kg

Photos

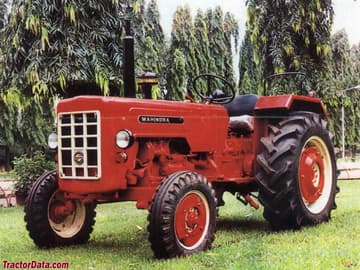

Mahindra 350
