Massey Ferguson 2820

The Massey Ferguson 2820 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Tuff Torq K71. Operating weight: 125 lbs 56 kg.

Engine Power

Gasoline (gross): 20 hp / 14.9 kW

Fuel & Capacities

4 gal 15.1 L

Transmission

Tuff Torq K71

Operating Weight

125 lbs 56 kg

Overview

	2002 - 2005 2800 SeriesGarden tractorSimplicity built 2800 Series Garden tractor Simplicity built

Series map: 2820282320.0hp23.0hp

Note: the Massey Ferguson model 2820 is the same as the Simplicity Prestige 20. The following data is from the Prestige 20 listing.

Production
Distributor	Massey Ferguson
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $5,725 in 2003

Variants
Prestige 20	similar Simplicity model
1820H	similar AGCO model

Massey Ferguson 2820 Engine
20HP Kohler 624cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Massey Ferguson 2820 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Steering	manual
	power optional
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	666 lbs 302 kg
Front tire	16x6.5-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	500
Battery volts	12

References

Lawn & Garden Equipment published in 2002, by Massey Ferguson

Engine

Series map: 2820282320.0hp23.0hp

Note: the Massey Ferguson model 2820 is the same as the Simplicity Prestige 20. The following data is from the Prestige 20 listing.

Engine Detail — 624 cc / 38.1 ci Gasoline

Manufacturer	Kohler CV20S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	20 hp 14.9 kW
Compression	8.5:1
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

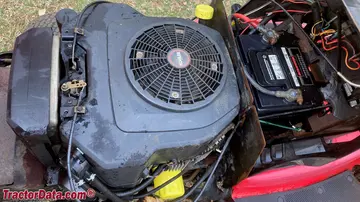

Massey Ferguson 2820 Engine

Image courtesy of Steve

Transmission

Series map: 2820282320.0hp23.0hp

Note: the Massey Ferguson model 2820 is the same as the Simplicity Prestige 20. The following data is from the Prestige 20 listing.

Transmission — Tuff Torq K71

Transmission	Tuff Torq K71
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	4.9 qts 4.6 L

Dimensions

Series map: 2820282320.0hp23.0hp

Note: the Massey Ferguson model 2820 is the same as the Simplicity Prestige 20. The following data is from the Prestige 20 listing.

Massey Ferguson 2820 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	53 inches 134 cm
Length	75 inches 190 cm
Width	39 inches 99 cm
Height	50 inches 127 cm
Shipping weight	666 lbs 302 kg
Max rear axle	728 lbs 330 kg
Front axle	Cast-iron

Attachments

Series map: 2820282320.0hp23.0hp

Note: the Massey Ferguson model 2820 is the same as the Simplicity Prestige 20. The following data is from the Prestige 20 listing.

Attachment overview
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

50" Mower deck
Type	mid-mount Simplicity 1694039
	3-blade
Cutting width	50 inches 127 cm
Weight	125 lbs 56 kg
Overall width	62 inches 157 cm
Cut height	1.25 to 3.75 inch 3 to 9 cm

Photos

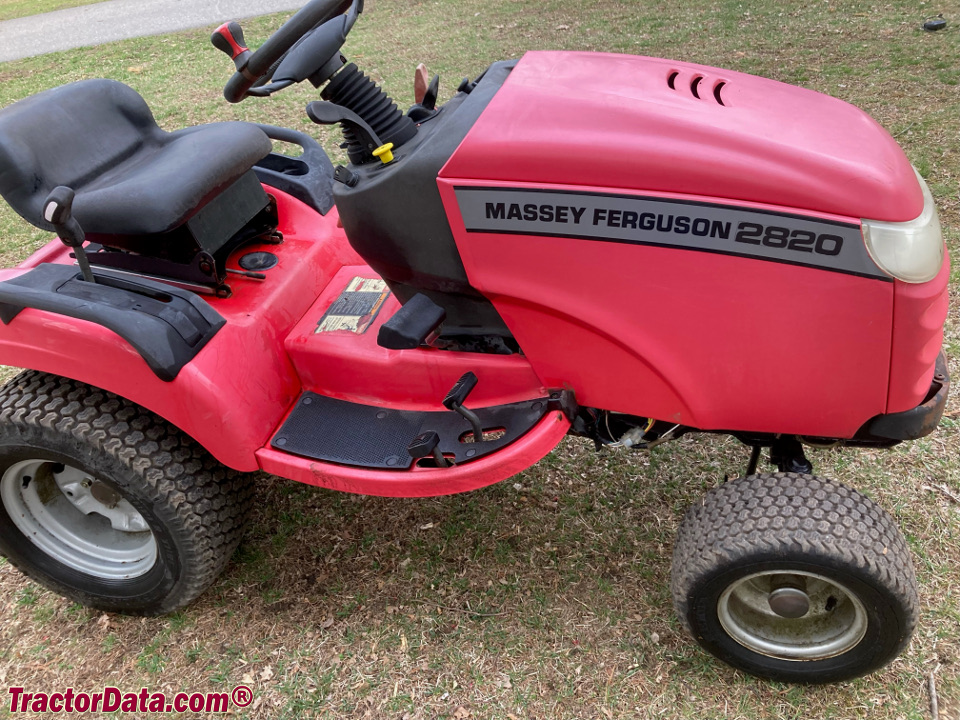

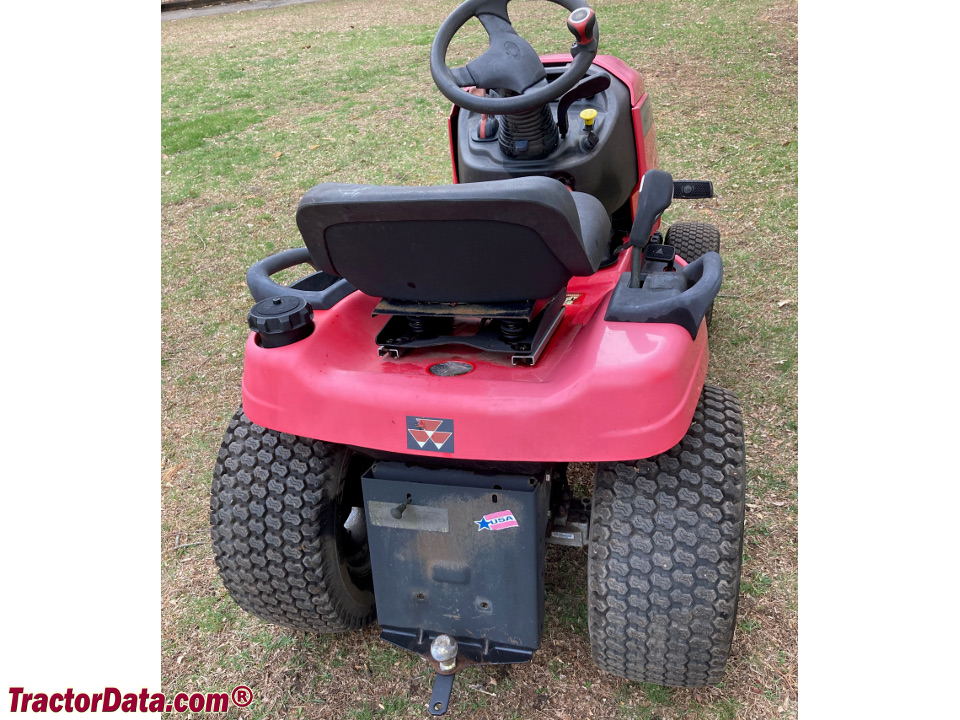

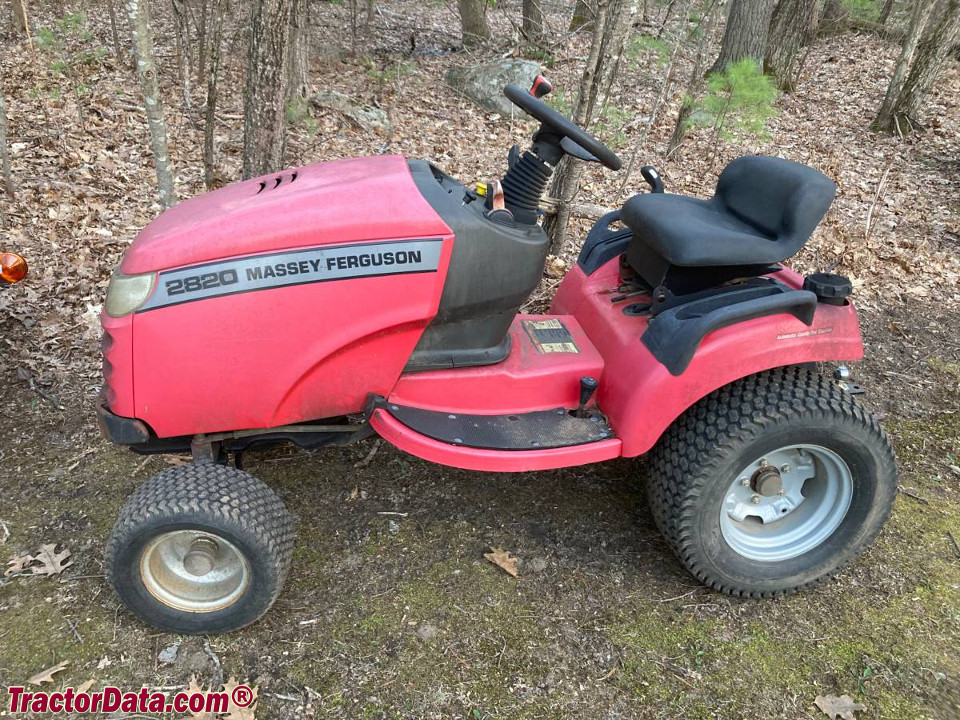

Massey Ferguson 2820

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson Lawn Tractors Massey Ferguson 2820 based on its 20 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 2820.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Massey Ferguson Lawn Tractors Massey Ferguson 2820 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 2820.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)20 hp

Kilowatts (kW)14.9 kW

Metric Horsepower (PS / CV)20.3 PS
