Massey Ferguson 320GTX

The Massey Ferguson 320GTX is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 770 cc 46.98 ci engine. The rated power output is 20 hp 14.9 kW. Transmission: Hy-drive. Operating weight: 750 lbs 340 kg.

Overview

	1991 - 1994 300 GTX SeriesGarden tractorIngersoll built
1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

Production
Distributor	Massey Ferguson
Manufacturer	Ingersoll
Garden tractor

Massey Ferguson 320GTX Engine
20HP Kohler 770cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Massey Ferguson 320GTX Transmission
hydraulic drive
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	750 lbs 340 kg
Front tire	16x6.50-8
Rear tire	8.00-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery volts	12

References
Lawn and Garden Tractors published in 1991, by Massey Ferguson

Engine

	1991 - 1994 300 GTX SeriesGarden tractorIngersoll built
1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

Engine Detail — 770 cc / 46.98 ci Gasoline

Manufacturer	Kohler Magnum M20QS
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	770 cc 46.98 ci
Bore/Stroke	3.125x3.062 inches 79 x 78 mm
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

	1991 - 1994 300 GTX SeriesGarden tractorIngersoll built
1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

Transmission — Hy-drive

Transmission	Hy-drive
Type	hydraulic drive
Gears	infinite forward and reverse

Dimensions

	1991 - 1994 300 GTX SeriesGarden tractorIngersoll built
1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

Massey Ferguson 320GTX Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	8.00-16

Dimensions
Wheelbase	48 inches 121 cm
Length	72 inches 182 cm
Width	40.75 inches 103 cm
Height (steering wheel)	44 inches 111 cm
Weight	750 lbs 340 kg

Attachments

	1991 - 1994 300 GTX SeriesGarden tractorIngersoll built
1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

1991 - 1994
300 GTX Series
Garden tractor
Ingersoll built

Attachment overview
44" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

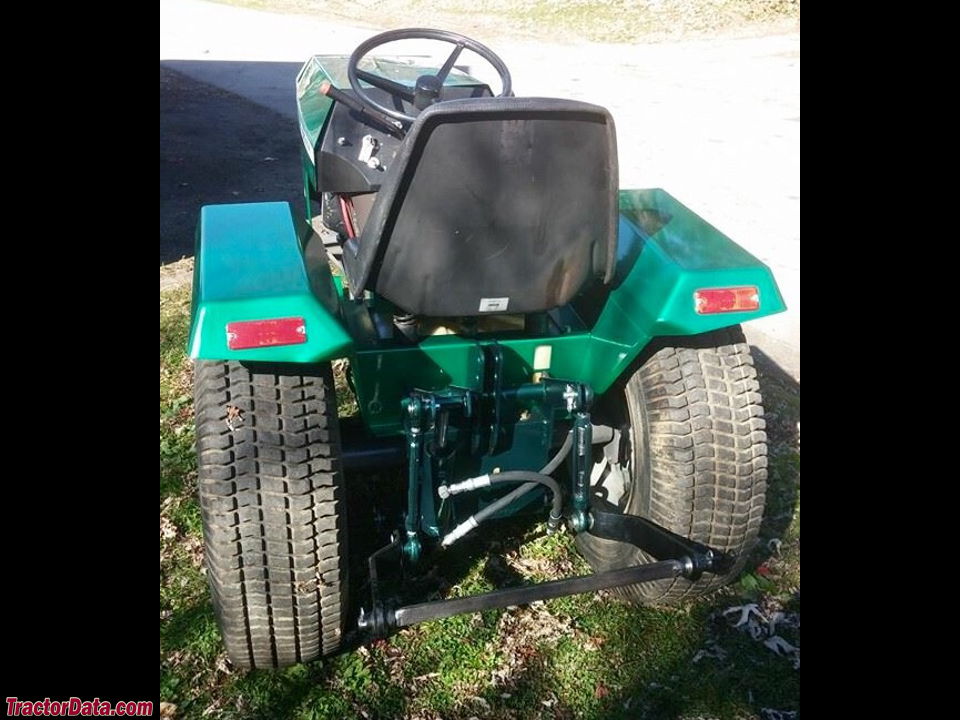

Massey Ferguson 320GTX garden tractor with custom paint and headlights.

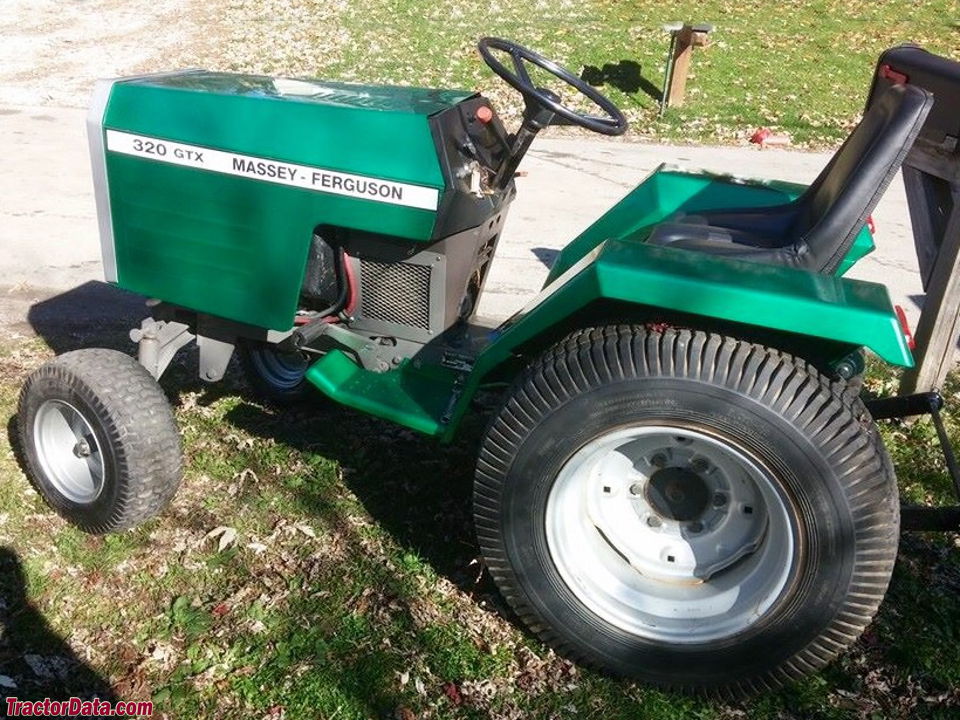

Massey Ferguson 320GTX garden tractor with custom paint and headlights.

Massey Ferguson 320GTX garden tractor with custom paint and headlights.
