Minneapolis-Moline G705

The Minneapolis-Moline G705 is a tractor produced by Minneapolis Moline. It is equipped with a 504 ci 8.3 L engine. The listed engine power is Diesel (listed): 108 hp / 80.5 kW; LP gas (listed): 112 hp / 83.5 kW. Transmission: 5 forward and 1 reverse. Operating weight: 7617 to 8155 pounds.

Engine Power

Diesel (listed): 108 hp / 80.5 kW; LP gas (listed): 112 hp / 83.5 kW

Fuel & Capacities

LP gas

Transmission

5 forward and 1 reverse

Operating Weight

7617 to 8155 pounds

Overview

	1962 - 1965 Standard-tread tractor

Production
Manufacturer	Minneapolis-Moline
Standard-tread tractor
Built in Hopkins, Minnesota, USA
Original price was $7,000 in 1965

Variants
G705	2WD
G706	4WD

Minneapolis-Moline G705 Transmission
5-speed unsynchronized gear
Transmission details ...

Minneapolis-Moline G705 Power
Engine	112 hp 83.5 kW
Diesel PTO (claimed)	92 hp 68.6 kW
LP-gas PTO (claimed)	95 hp 70.8 kW
Drawbar (tested)	90.80 hp 67.7 kW
PTO (tested)	101.05 hp 75.4 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Differential disc brakes
Open operator station. Cab optional with available air-conditioning.

Hydraulics
Type	open center OptOptional
Valves	2

Power Take-off (PTO)
Rear PTO	live OptOptional
Rear PTO Type	540 (1.375)
Engine RPM	540@1200

Dimensions & Tires
Wheelbase	96 inches 243 cm
Weight	7617 to 8155 pounds
Front tire	7.50-18
Rear tire	18.4-34
Full dimensions and tires ...

References

New Moline Big G Tractors with 100 H.P. Engines published in 1962, by Minneapolis-Moline
Buyer's Guide published in 1964, by Minneapolis-Moline

Engine

Engine options
Minneapolis-Moline 8.3L 6-cyl diesel
Minneapolis-Moline 8.3L 6-cyl LP gas

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Minneapolis-Moline
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled inline
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	108 hp 80.5 kW
Air cleaner	oil bath
Compression	14.8:1
Rated RPM	1600
Starter volts	12
Oil capacity	14 qts 13.2 L
Coolant capacity	50 qts 47.3 L

Engine Detail — 504 ci / 8.3 L LP Gas

Manufacturer	Minneapolis-Moline
Fuel Type	LP gas
Configuration	6-cylinder, liquid-cooled inline
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	112 hp 83.5 kW
Air cleaner	oil bath
Compression	8.0:1
Rated RPM	1600
Starter volts	12
Oil capacity	14 qts 13.2 L
Coolant capacity	50 qts 47.3 L

Transmission

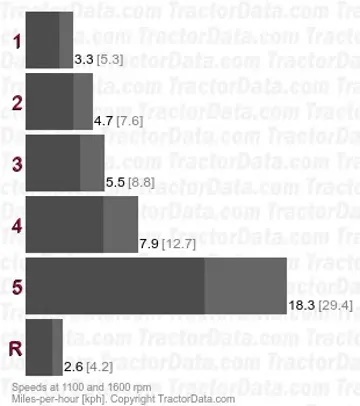

Transmission — 5 forward and 1 reverse unsynchronized gear

Type	unsynchronized gear
Gears	5 forward and 1 reverse
Clutch	dry disc
Oil capacity	52 qts 49.2 L
With 18.4-34 rear tires.

Dimensions

Minneapolis-Moline G705 Tires
Ag front	7.50-18
Ag rear	18.4-34
Ag rear	23.1-26

Dimensions
Wheelbase	96 inches 243 cm
Length	105.5 inches 267 cm
Width	82 inches 208 cm
Height (steering wheel)	79 inches 200 cm
Height (exhaust)	96.25 inches 244 cm
Clearance (front axle)	17 inches 43 cm
Clearance (rear axle)	26 inches 66 cm
Front tread	54.25 inches 137 cm
Rear tread	64.5 inches 163 cm

Minneapolis-Moline G705 Weight
Diesel Shipping	7667 lbs 3477 kg
LP-gas Shipping	7617 lbs 3455 kg
LP-gas Operating	7985 lbs 3621 kg
Diesel Operating	8155 lbs 3699 kg
Ballasted	15,110 lbs 6853 kg

Tests

Tractor Tests
NTTL 835: diesel 5-speed 2WD
NTTL 836: LP gas 5-speed 2WD

Nebraska Tractor Test 835
Diesel 5-speed 2WD April 19 - 30, 1963 Link: Nebraska Tractor Test 835 file
PTO performance
Power at rated engine speed	101.01 hp 75.3 kW
Fuel use	7.4 gal/hour 28.0 l/hour
Power at rated PTO speed	81.47 hp 60.8 kW
Fuel use	5.7 gal/hour 21.6 l/hour
Drawbar performance
Max power	90.80 hp 67.7 kW
Fuel use	7.4 gal/hour 28.0 l/hour
Gear 3 used for power test.
Max pull	11,345 lbs 5146 kg
Gear 1 used for pull test.

Nebraska Tractor Test 836
LP gas 5-speed 2WD April 24 - May 1, 1963 Link: Nebraska Tractor Test 836 file
PTO performance
Power at rated engine speed	101.05 hp 75.4 kW
Fuel use	11.5 gal/hour 43.5 l/hour
Power at rated PTO speed	82.12 hp 61.2 kW
Fuel use	9.0 gal/hour 34.1 l/hour
Drawbar performance
Max power	90.08 hp 67.2 kW
Fuel use	11.4 gal/hour 43.1 l/hour
Gear 3 used for power test.
Max pull	11,432 lbs 5185 kg
Gear 1 used for pull test.

Photos

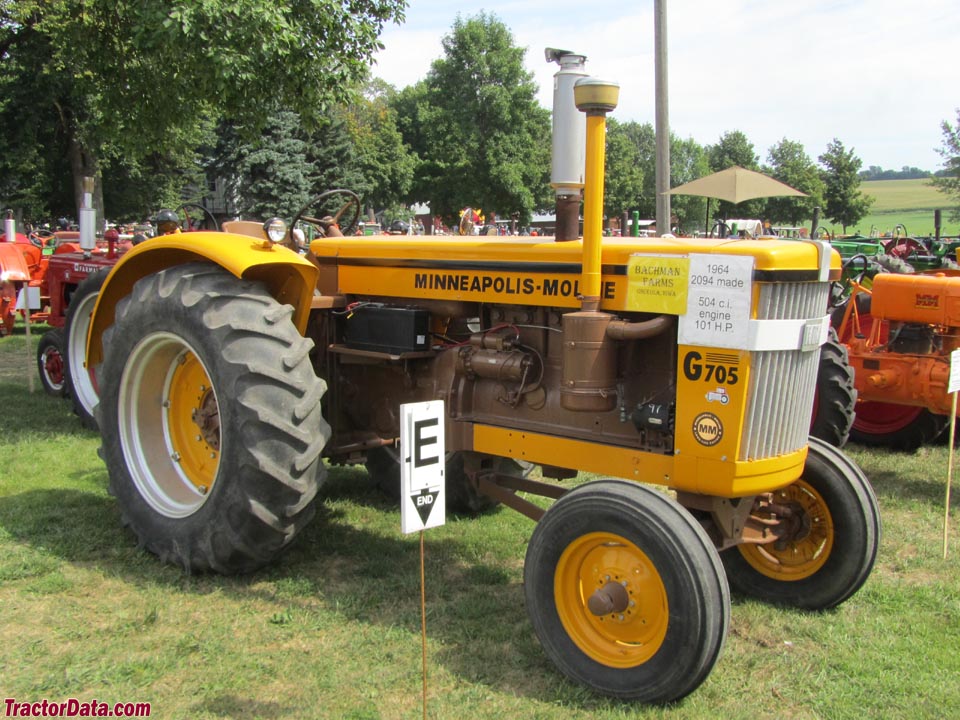

Minneapolis-Moline G705 with diesel engine.

Minneapolis-Moline G705 operator station and controls.

Minneapolis-Moline G705 with 4WD and LP-gas engine.

Minneapolis-Moline G705 plowing with a Case five-bottom plow.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline G705.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
