Murray 42202

The Murray 42202 is a tractor produced by Murray Lawn Tractors. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 532 lbs 241 kg.

Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
2 gal 7.6 L
Transmission
infinite forward and reverse
Operating Weight
532 lbs 241 kg

Overview

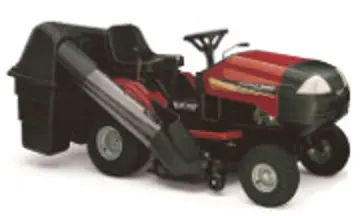

Murray 42202 tractor photo
1994 Lawn tractor
Production
Manufacturer
Murray
Lawn tractor
Murray 42202 Engine
16HP Tecumseh 1-cyl gasoline
Fuel tank
2 gal 7.6 L
Engine details ...
Murray 42202 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Weight
532 lbs 241 kg
Front tire
15.00x6.00
Rear tire
20.00x10.00
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
42202 references literature
1994 Mowers published by Murray

Engine

Engine Detail — Gasoline

Manufacturer
Tecumseh
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Power (gross)
16 hp 11.9 kW
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse

Dimensions

Murray 42202 Tires
Lawn/turf front
15.00x6.00
Lawn/turf rear
20.00x10.00
Dimensions
Shipping weight
532 lbs 241 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
42" Mower deck
Type
mid-mount Murray
manual lift
Cutting width
42 inches 106 cm

Photos

Murray 42202 tractor photo

Murray 42202 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Murray Lawn Tractors Murray 42202 based on its 16 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Murray Lawn Tractors Murray 42202.

Estimated Continuous Field Runtime: 2.4 hrs

Approximately 2.4 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Murray Lawn Tractors Murray 42202 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Murray Lawn Tractors Murray 42202.

Converted Equivalents:

Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS

Direct Competitor Comparison

Compare Murray 42202 against same-era industry alternatives in the same horsepower class.

Current Model
Murray Lawn Tractors

Murray 42202

Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota JB14

Engine Power:14.4
Production Years:2006 - 2008
DeereMarket Competitor

Deere LA

Engine Power:14.4
Production Years:1941 - 1946
FordMarket Competitor

Ford 1120

Engine Power:14.7
Production Years:1987 - 1993
New HollandMarket Competitor

New Holland 1120

Engine Power:14.7
Production Years:1987 - 1993
