Murray MT200

The Murray MT200 is a tractor produced by Murray Lawn Tractors. It is equipped with a 540 cc 33 ci engine. The listed engine power is Gasoline (gross): 19 hp / 14.2 kW. Transmission: DYMA220. Drive type: belt. Operating weight: 392 lbs 177 kg.

Engine Power
Gasoline (gross): 19 hp / 14.2 kW
Drive & Traction
belt
Fuel & Capacities
1.4 gal 5.3 L
Transmission
DYMA220
Operating Weight
392 lbs 177 kg

Overview

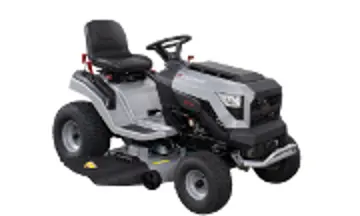

Murray MT200 tractor photo
2023 - Lawn tractorNingbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
Production
Distributor
Murray (a part of Briggs & Stratton)
Manufacturer
Ningbo Daye
Lawn tractor
Built in China
Original price was $2,199 in 2023
Murray MT200 Engine
19HP Briggs & Stratton 540cc 1-cyl gasoline
Fuel tank
1.4 gal 5.3 L
Engine details ...
Murray MT200 Transmission
CVT
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Weight
392 lbs 177 kg
Front tire
15x6.00-6
Rear tire
20x8.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
9
Battery CCA
230
Battery volts
12
Battery Group
U1
References
MT200 references literature
Operator's Manual MT200 Lawn Tractor published in 2022

Engine

Murray MT200 tractor photo
2023 - Lawn tractorNingbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
2023 -
Lawn tractor
Ningbo Daye built

Engine Detail — 540 cc / 33 ci Gasoline

Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Briggs & Stratton EX1900 33R8
Displacement
540 cc 33 ci
Bore/Stroke
3.70x3.06 inches 94 x 78 mm
Power (gross)
19 hp 14.2 kW
Air cleaner
dry
Starter
electric
Starter volts
12
Oil capacity
1.5 qts 1.4 L
Oil change
50 h
Sparkplug gap
0.030 inches 0.762 mm

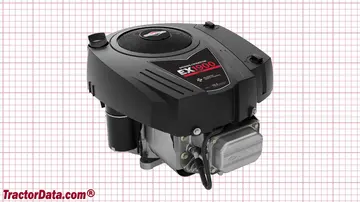

Murray MT200 Engine
Murray MT200 engine image

Transmission

Murray MT200 tractor photo
2023 - Lawn tractorNingbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
2023 -
Lawn tractor
Ningbo Daye built

Transmission — DYMA220

Transmission
DYMA220
Type
belt-driven CVT
Gears
infinite forward and reverse
MT200 DYMA220 belt-driven CVT speeds

Dimensions

Murray MT200 tractor photo
2023 - Lawn tractorNingbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
Murray MT200 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
20x8.00-8
Dimensions
Length
67.9 inches 172 cm
Height
41.5 inches 105 cm
Weight
392 lbs 177 kg

Attachments

Murray MT200 tractor photo
2023 - Lawn tractorNingbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
2023 -
Lawn tractor
Ningbo Daye built
42" Mower deck
Type
mid-mount Murray
2-blade with manual lift
Cutting width
42 inches 106 cm
Drive
belt
Overall width
52.6 inches 133 cm
Cut height
1 to 4 inch 2 to 10 cm
Cut positions
13

Photos

Murray MT200

Murray MT200

Murray MT200

Murray MT200

Murray MT200 operator station and controls.

Murray MT200 operator station and controls.

Recommended Implements & Sizing Guide

Engineering recommendations for Murray Lawn Tractors Murray MT200 based on its 19 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Murray Lawn Tractors Murray MT200.

Estimated Continuous Field Runtime: 1.4 hrs

Approximately 1.4 hours of continuous field operation at ~75% rated power on a full tank (1.4 gal / 5.3 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Murray Lawn Tractors Murray MT200 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Murray Lawn Tractors Murray MT200.

Converted Equivalents:

Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS
