Page 15RG

The Page 15RG is a tractor produced by Page Lawn Tractors. It is equipped with a 376 cc 22.97 ci engine. The listed engine power is Gasoline (listed): 9 hp / 6.7 kW; Gasoline (listed): 9 hp / 6.7 kW. Transmission: 3 forward and 1 reverse. Operating weight: 720 lbs 326 kg.

Overview

	1958 - 1963 Garden tractor

Production
Manufacturer	Page (a part of Pioneer Manufacturing)
Garden tractor
Built in Richfield, Wisconsin, USA

Page 15RG Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	56 inches 142 cm
Weight	720 lbs 326 kg
Full dimensions and tires ...

References
Red Book 1960 published by Implement & Tractor
Page published in 1963, by Pioneer Manufacturing

Engine

Engine options
9HP Kohler 391cc 1-cyl gasoline
9HP Briggs & Stratton 376cc 1-cyl gasoline

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer	Kohler K241
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	391 cc 23.9 ci
Bore/Stroke	3.25x2.875 inches 83 x 73 mm
Power	9 hp 6.7 kW
Rated RPM	3600
Starter type	manual recoil
	electric OptOptional

Engine Detail — 376 cc / 22.97 ci Gasoline

Manufacturer	Briggs & Stratton 23
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	376 cc 22.97 ci
Bore/Stroke	3.00x3.25 inches 76 x 83 mm
Power	9 hp 6.7 kW

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	165.1mm dry disc

Dimensions

Page 15RG Tires
Ag front	4x8
Ag rear	7x16

Dimensions
Wheelbase	56 inches 142 cm
Length	78 inches 198 cm
Width	38 inches 96 cm
Height	39 inches 99 cm
Weight	720 lbs 326 kg
Clearance (rear axle)	15 inches 38 cm
Rear tread	23 to 38 inches 58 to 96 cm

Attachments

Attachment overview
32" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

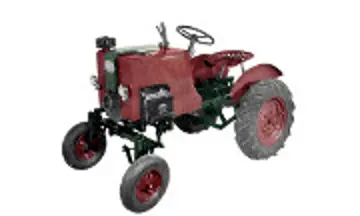

Page 15RG tractor photo
