SAME Silver 115

The SAME Silver 115 is a tractor produced by Same. It is equipped with a 366.1 ci 6.0 L engine. The listed engine power is Diesel (net): 115 hp / 85.8 kW; Diesel (gross): 122 hp / 91.0 kW. Transmission: Agroshift Creeper. Operating weight: 11199 lbs 5079 kg.

Overview

	2003 - 2007 Silver Series

Production
Manufacturer	SAME

SAME Silver 115 Engine
SAME 6.0L 6-cyl diesel
Fuel tank	63.4 gal 240.0 L
Engine details ...

SAME Silver 115 Power
Engine (gross)	122 hp 91.0 kW
Engine (net)	115 hp 85.8 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Pump flow	15.3 gpm 57.9 lpm

Tractor hitch
Rear lift	10584 lbs 4800 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540E/540/1000E/1000
Front PTO	independent
Front PTO Type	1000

Dimensions & Tires
Wheelbase	108.3 inches 275 cm
Weight	11199 lbs 5079 kg
Rear tire	18.4R34
Full dimensions and tires ...

Electrical
Ground	negative

Engine

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer	SAME 1000.6 WT
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	366.1 ci 6.0 L
Emissions	Stage II
Rated Power (net)	115 hp 85.8 kW
Rated Power (gross)	122 hp 91.0 kW
Rated RPM	2500
Torque	328.2 lb-ft 445.0 Nm
Torque RPM	1400
Starter type	electric

Transmission

Transmission options
18-speed synchromesh
54-speed three-speed power shift
72-speed

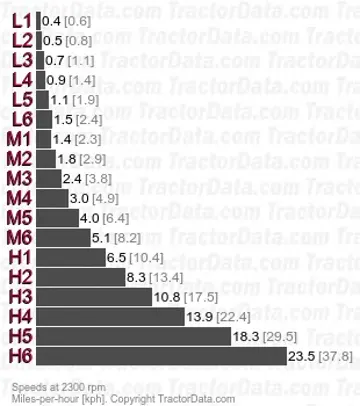

Transmission — 18 forward and reverse synchromesh

Type	synchromesh
Gears	18 forward and reverse
Six synchronized gears in three ranges. Also available with creeper range providing 24 gears.

Transmission — Agroshift

Transmission	Agroshift
Type	three-speed power shift
Gears	54 forward and reverse
Six synchronized gears in four ranges with three-speed power shift.
Transmission	Agroshift Creeper
Gears	72 forward and reverse

Dimensions

SAME Silver 115 Tires
Ag rear	18.4R34

Dimensions
Wheelbase	108.3 inches 275 cm
Length	170.3 inches 432 cm
Width	87.2 inches*Minimum width. 221 cm
Height (cab)	114 inches 289 cm
Weight	11199 lbs 5079 kg
Ground clearance	15.75 inches 40 cm
Front tread	71.9 to 91.1 inches 182 to 231 cm
Rear tread	68.9 to 88.6 inches 175 to 225 cm

Photos

SAME Silver 115 tractor photo
