Scotts S2546
The Scotts S2546 is a tractor produced by Scotts Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (listed): 25 hp / 18.6 kW. Transmission: Tuff Torq K-51. Operating weight: 406 lbs 184 kg.
Engine Power
Gasoline (listed): 25 hp / 18.6 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Tuff Torq K-51
Operating Weight
406 lbs
184 kg
Overview
 | 1999 - 2000
Lawn tractorJohn Deere built
Lawn tractor
John Deere built |
|---|
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Scotts S2546 Engine | |
|---|---|
25HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Scotts S2546 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 406 lbs
184 kg |
Front tire | 15x6.50-6 |
Rear tire | 20x10.0-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 190 |
Battery volts | 12 |
Battery Group | BCI Group U1 |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft |
Displacement | 724 cc
44.2 ci |
Power | 25 hp
18.6 kW |
Air cleaner | foam |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Sparkplug gap | 0.030 inches
0.762 mm |
Transmission
Transmission — Tuff Torq K-51
Transmission | Tuff Torq K-51 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Scotts S2546 Tires | |
|---|---|
Lawn/turf front | 15x6.50-6 |
Lawn/turf rear | 20x10.0-8 |
20x8.0-8 | |
Dimensions | |
|---|---|
Length | 60 inches
152 cm |
Width | 38 inches
96 cm |
Height | 38.6 inches
98 cm |
Weight | 406 lbs
184 kg |
Attachments
46" Mower deck | |
|---|---|
Type | mid-mount Scotts |
3-blade with manual lift | |
Cutting width | 46 inches
116 cm |

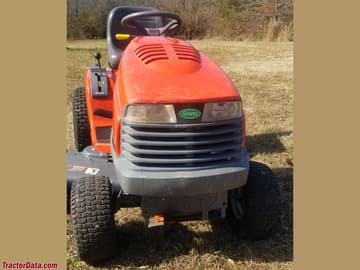

Photos
Scotts S2546
Scotts S2546
Scotts S2546
Recommended Implements & Sizing Guide
Engineering recommendations for Scotts Lawn Tractors Scotts S2546 based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Scotts Lawn Tractors Scotts S2546.
Estimated Continuous Field Runtime: 1 hrs
Approximately 1 hours of continuous field operation at ~75% rated power on a full tank (1.3 gal / 4.7 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Scotts Lawn Tractors Scotts S2546 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Scotts Lawn Tractors Scotts S2546.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
