Simplicity 17GTH

The Simplicity 17GTH is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 691 cc 42.2 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 512 lbs 232 kg.

Overview

	1990 - 1991 GTH SeriesGarden tractor GTH Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price	$4,699 (1990 )
	$4,850 (1991 )

Simplicity 17GTH Engine
17HP Kohler 691cc 2-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 17GTH Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	48.3 inches 122 cm
Weight	512 lbs 232 kg
Front tire	15x6.00-6
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12
Battery AH	39

References
Outdoor Power Equipment published in 1990, by Simplicity
1990 Pocket Price List published in 1989, by Simplicity
1991 Pocket Price List published in 1990, by Simplicity

Engine

Engine Detail — 691 cc / 42.2 ci Gasoline

Manufacturer	Kohler MV17
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft horizontally-opposed
Displacement	691 cc 42.2 ci
Bore/Stroke	3.12x2.75 inches 79 x 70 mm
Power (gross)	17 hp 12.7 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	6.25 qts 5.9 L

Dimensions

Simplicity 17GTH Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	48.3 inches 122 cm
Length	67 inches 170 cm
Width	37 inches 93 cm
Height (steering wheel)	41.1 inches 104 cm
Height (hood)	35.6 inches 90 cm
Shipping weight	512 lbs 232 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

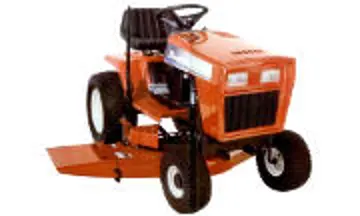

Simplicity 17GTH tractor photo
