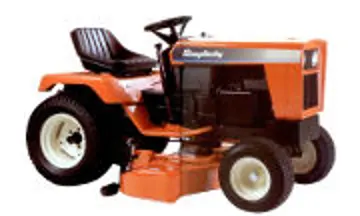

Simplicity 17GTH-L

The Simplicity 17GTH-L is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 808 lbs 366 kg.

Overview

	1990 - 1992 Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $4,500 in 1991

Simplicity 17GTH-L Engine
17HP Kohler 691cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 17GTH-L Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	50.7 inches 128 cm
Weight	808 lbs 366 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	296
Battery volts	12

References
Operator's Manual GTH-L Series (1706297-02) published in 1992
Parts Manual 17GTH-L & 7100 Series (TP-1125-03) published in 1991
Outdoor Power Equipment published in 1990, by Simplicity
Outdoor Power Equipment published in 1992, by Simplicity
1991 Pocket Price List published in 1990, by Simplicity

Engine

Engine Detail — 691 cc / 42.18 ci Gasoline

Manufacturer	Kohler KT-17
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	691 cc 42.18 ci
Bore/Stroke	3.125x2.75 inches 79 x 70 mm
Power (gross)	17 hp 12.7 kW
Air cleaner	dry element with foam precleaner
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity 17GTH-L Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	50.7 inches 128 cm
Length	70 inches 177 cm
Width	36.9 inches 93 cm
Height (steering wheel)	39.7 inches 100 cm
Height (hood)	35.7 inches 90 cm
Weight	808 lbs 366 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

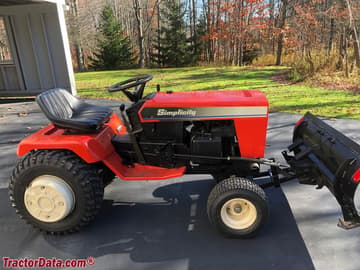

Simplicity 17GTH-L
