Simplicity 4210

The Simplicity 4210 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 5 forward and 1 reverse. Operating weight: 411 lbs*Weight with mower deck. 186 kg.

Overview

	1989 Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor

Simplicity 4210 Engine
10HP Briggs & Stratton 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 4210 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	411 lbs 186 kg
Front tire	13x5.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Power (gross)	10 hp 7.5 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 4210 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	63 inches 160 cm
Width	34.25 inches 86 cm
Height (steering wheel)	39.7 inches 100 cm
Weight	411 lbs*Weight with mower deck. 186 kg
Clearance (front axle)	9 inches 22 cm
Clearance (rear axle)	6 inches 15 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Simplicity
	2-blade
Cutting width	36 inches 91 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

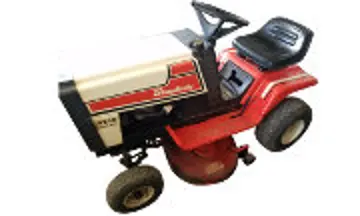

Simplicity 4210
