Simplicity 7010 Landlord

The Simplicity 7010 Landlord is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 6 forward and 2 reverse.

Overview

	1975 - 1979 7000 SeriesGarden tractor 7000 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor

Simplicity 7010 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 7010 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Open operator station.

Tractor hitch
Type	sleeve hitch

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Front tire	4.80x4.00-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	45

References
Lawn & Garden Power Equipment published in 1976, by Simplicity
Lawn & Garden Equipment published in 1978, by Simplicity

Engine

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer	Kohler K241S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	391 cc 23.9 ci
Bore/Stroke	3.25x2.88 inches 83 x 73 mm
Power (gross)	10 hp 7.5 kW
Air cleaner	dry
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — 6 forward and 2 reverse belt-driven gear

Type	belt-driven gear
Gears	6 forward and 2 reverse
Clutch	idler pulley
Oil type	2.25
Oil change
	3600:0.7:1.7:2.8:1.6:3.7:6.1:1.5:3.2 h
Three gears, plus reverse, in two ranges.

	2.25

Dimensions

Simplicity 7010 Tires
Lawn/turf front	4.80x4.00-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	67 inches 170 cm
Width	37.5 inches 95 cm
Height (steering wheel)	39.25 inches 99 cm
Height (hood)	35.5 inches 90 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity
Cutting width	42 inches 106 cm

Photos

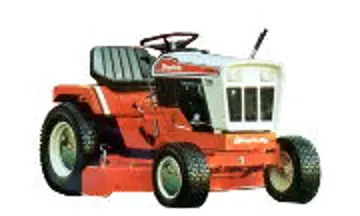

Simplicity 7010 Landlord

Simplicity 7010 Landlord

Simplicity 7010 Landlord

Simplicity Landlord 7010 with hood and rear fender open.
