Simplicity Broadmoor 17H
The Simplicity Broadmoor 17H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Tuff Torq K61. Operating weight: 560 lbs 254 kg.
Engine Power
Gasoline (gross): 17 hp / 12.7 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Tuff Torq K61
Operating Weight
560 lbs
254 kg
Overview
 | 2000 - 2001
Broadmoor SeriesLawn tractor
Broadmoor Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Original price was $3,525 in 2000 | |
Variants | |
|---|---|
1617HC | similar AGCO model |
Simplicity Broadmoor 17H Engine | |
|---|---|
17HP Vanguard 501cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity Broadmoor 17H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 560 lbs
254 kg |
Front tire | 15x6.0-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The way to a beautiful lawn. published in 2000, by Simplicity | |
Product Guide 2000 published by Simplicity | |
Product Guide Fall 2001 published by Simplicity |
Engine
Engine Detail — 501 cc / 30.6 ci Gasoline
Manufacturer | Vanguard 312707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 501 cc
30.6 ci |
Bore/Stroke | 3.57x3.06 inches
91 x 78 mm |
Power (gross) | 17 hp
12.7 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Tuff Torq K61
Transmission | Tuff Torq K61 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity Broadmoor 17H Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 68.5 inches
173 cm |
Width | 34.5 inches
87 cm |
Height | 39 inches
99 cm |
Weight | 560 lbs
254 kg |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade |
44" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Overall width | 56 inches
142 cm |
Cut height | 1.0 to 3.6 inch
2 to 9 cm |
Photos

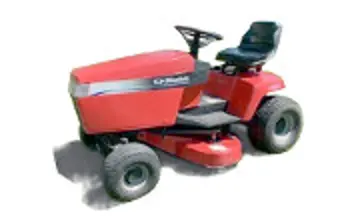

Simplicity Broadmoor 17H tractor photo
Simplicity Lawn Tractors Simplicity Broadmoor 17H Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Broadmoor 17H.
Converted Equivalents:
Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
