Simplicity Broadmoor 5010 1690007

The Simplicity Broadmoor 5010 1690007 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 400 lbs 181 kg.

Overview

	1974 - 1976 Broadmoor SeriesGarden tractor Broadmoor Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
1690007	5010
1690118	5010 LTD
610	similar Allis Chalmers model

Simplicity Broadmoor 5010 Engine
10HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	0.875 gal 3.3 L
Engine details ...

Simplicity Broadmoor 5010 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	41.5 inches 105 cm
Weight	400 lbs 181 kg
Front tire	5.30/4.50-6
Rear tire	18x9.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	45

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 251707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.4375x2.625 inches 87 x 67 mm
Power (gross)	10 hp 7.5 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse
Oil capacity	1 qts 0.9 L
Oil type	SAE 90

Dimensions

Simplicity Broadmoor 5010 Tires
Lawn/turf front	5.30/4.50-6
Lawn/turf rear	18x9.50-8

Dimensions
Wheelbase	41.5 inches 105 cm
Length	60 inches 152 cm
Width	31 inches 78 cm
Height (steering wheel)	35.25 inches 89 cm
Height (hood)	33.6 inches 85 cm
Shipping weight	400 lbs 181 kg

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

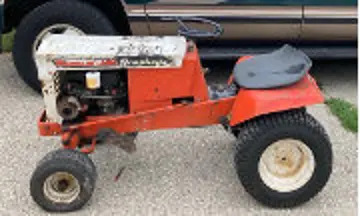

Simplicity Broadmoor 5010 1690007
