Simplicity Express 17H
The Simplicity Express 17H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Tuff Torq K51. Operating weight: 107 lbs 48 kg.
Engine Power
Gasoline (gross): 17 hp / 12.7 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
Tuff Torq K51
Operating Weight
107 lbs
48 kg
Overview
 | 1999 - 2003
Express SeriesLawn tractor
Express Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Original price was $2,499 in 2000 | |
Simplicity Express 17H Engine | |
|---|---|
17HP Briggs & Stratton 501cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Simplicity Express 17H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 455 lbs
206 kg |
Front tire | 15x6.0-6 |
Rear tire | 20x8.0-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Product Guide 2000 published by Simplicity | |
Product Guide Fall 2001 published by Simplicity |
Engine
Engine Detail — 501 cc / 30.6 ci Gasoline
Manufacturer | Briggs & Stratton Intek |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 501 cc
30.6 ci |
Bore/Stroke | 3.57x3.06 inches
91 x 78 mm |
Power (gross) | 17 hp
12.7 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Transmission
Transmission — Tuff Torq K51
Transmission | Tuff Torq K51 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.5 qts
2.4 L |
Oil type | SAE 10W-30 SG/CD |
Oil change | 250 h |
 | |
Dimensions
Simplicity Express 17H Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 20x8.0-8 |
Dimensions | |
|---|---|
Length | 68 inches
172 cm |
Width | 36 inches
91 cm |
Height (steering wheel) | 41 inches
104 cm |
Height (hood) | 34 inches
86 cm |
Weight | 455 lbs
206 kg |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Blade |
44" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Weight | 107 lbs
48 kg |
Overall width | 56 inches
142 cm |
Cut height | 1.5 to 3.9 inch
3 to 9 cm |
Photos

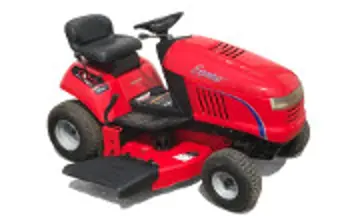

Simplicity Express 17H tractor photo
Simplicity Lawn Tractors Simplicity Express 17H Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Express 17H.
Converted Equivalents:
Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
