Simplicity Lancer 17

The Simplicity Lancer 17 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Tuff Torq K46. Operating weight: 107 lbs 48 kg.

Overview

	2003 - 2005 Lancer SeriesFront-mount mower Lancer Series Front-mount mower

Production
Manufacturer	Simplicity
Front-mount mower
Original price was $3,499 in 2004

Simplicity Lancer 17 Engine
17HP Briggs & Stratton 501cc 1-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

Simplicity Lancer 17 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	38 inches 96 cm
Weight	525 lbs 238 kg
Front tire	18x8.50-8
Rear tire	15x6.00-6
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
The Way To A Beautiful Lawn published in 2003, by Simplicity
The Way To A Beautiful Lawn published in 2004, by Simplicity
The Way To A Beautiful Lawn published in 2005, by Simplicity
Product Guide 2003 published by Simplicity

Engine

Engine Detail — 501 cc / 30.6 ci Gasoline

Manufacturer	Briggs & Stratton 31F777
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	501 cc 30.6 ci
Bore/Stroke	3.56x3.062 inches 90 x 78 mm
Power (gross)	17 hp 12.7 kW
Starter	electric
Starter volts	12

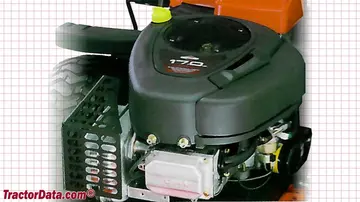

Simplicity Lancer 17 Engine

Transmission

Transmission — Tuff Torq K46

Transmission	Tuff Torq K46
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Lancer 17 Tires
Lawn/turf front	18x8.50-8
Lawn/turf rear	15x6.00-6

Dimensions
Wheelbase	38 inches 96 cm
Length	83 inches 210 cm
Width	48 inches 121 cm
Height (steering wheel)	49 inches 124 cm
Weight	525 lbs 238 kg

Attachments

44" Mower deck
Type	front-mount Simplicity 1694291
Cutting width	44 inches 111 cm
Weight	107 lbs 48 kg

Photos

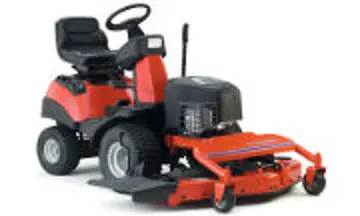

Simplicity Lancer 17 tractor photo
