Simplicity Landlord 17 DLX

The Simplicity Landlord 17 DLX is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 437 cc 26.7 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Tuff Torq K71. Operating weight: 135 lbs 61 kg.

Overview

	1998 - 2000 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
1717H	similar AGCO model
2717H	similar Massey Ferguson model

Simplicity Landlord 17 DLX Engine
17HP Kawasaki 437cc 2-cyl gasoline
Fuel tank	4.25 gal 16.1 L
Engine details ...

Simplicity Landlord 17 DLX Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	52.25 inches 132 cm
Weight	557 lbs 252 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
Battery CCA	340
Battery volts	12

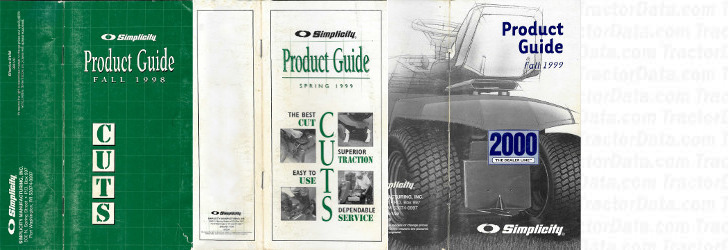

References
Product Guide Fall 1998 published by Simplicity
Product Guide Spring 1999 published by Simplicity
Product Guide 2000 published by Simplicity

Engine

Engine Detail — 437 cc / 26.7 ci Gasoline

Manufacturer	Kawasaki FD501V
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled vertical-shaft V-Twin
Displacement	437 cc 26.7 ci
Bore/Stroke	2.64x2.44 inches 67 x 62 mm
Power (gross)	17 hp 12.7 kW
Starter	electric
Starter volts	12

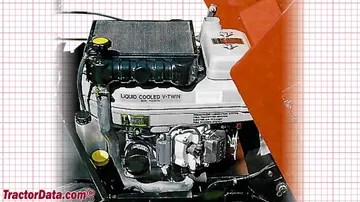

Simplicity Landlord 17 DLX Engine

Transmission

Transmission — Tuff Torq K71

Transmission	Tuff Torq K71
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Landlord 17 DLX Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	52.25 inches 132 cm
Length	75.25 inches 191 cm
Width	39 inches 99 cm
Height (steering wheel)	42.5 inches 107 cm
Height (hood)	36 inches 91 cm
Shipping weight	557 lbs 252 kg

Attachments

Attachment overview
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

50" Mower deck
Type	mid-mount Simplicity 1692688
	62-blade
Cutting width	50 inches 127 cm
Weight	135 lbs 61 kg
Overall width	3 inches 7 cm
Cut height	1 to 3.6 inch 2 to 9 cm

Photos

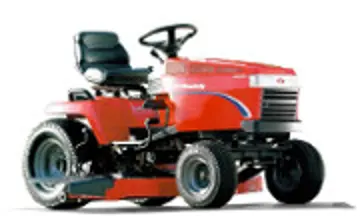

Simplicity Landlord 17 DLX tractor photo
