Simplicity Landlord 2210

The Simplicity Landlord 2210 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 392 cc 23.94 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 680 lbs 308 kg.

Overview

	1969 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
990496	mechanical lift
990497	hydraulic lift

Simplicity Landlord 2210 Engine
10HP Briggs & Stratton 392cc 1-cyl gasoline
Engine details ...

Simplicity Landlord 2210 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical idler pulley

Dimensions & Tires
Wheelbase	44.5 inches 113 cm
Weight	680 lbs 308 kg
Front tire	4.80-8
Rear tire	8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 392 cc / 23.94 ci Gasoline

Manufacturer	Briggs & Stratton 243431
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	392 cc 23.94 ci
Bore/Stroke	3.0625x3.25 inches 78 x 83 mm
Power (gross)	10 hp 7.5 kW
Starter	electric
Starter volts	12
Oil change	25 h

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse
Oil capacity	1.5 qts 1.4 L
Oil type	SAE 90

Dimensions

Simplicity Landlord 2210 Tires
Lawn/turf front	4.80-8
Lawn/turf rear	8.50-12

Dimensions
Wheelbase	44.5 inches 113 cm
Length	63 inches 160 cm
Width	34 inches 86 cm
Height (steering wheel)	37 inches 93 cm
Height (hood)	33 inches 83 cm
Shipping weight	680 lbs 308 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity
	3-blade, lift is manual or hydraulic OptOptional
Cutting width	42 inches 106 cm
Overall width	47.5 inches 120 cm
Cut height	1.625 to 3.125 inch 4 to 7 cm

Photos

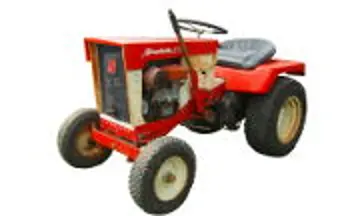

Simplicity Landlord 2210
