Simplicity Prestige 30

The Simplicity Prestige 30 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 809 cc 49.4 ci engine. The listed engine power is Gasoline (gross): 30 hp / 22.4 kW. Transmission: Tuff Torq K664. Drive type: 4x2 2WD. Operating weight: 815 lbs 369 kg.

Overview

	2012 - 2013 Prestige SeriesGarden tractor Prestige Series Garden tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Garden tractor
Built in McDonough, Georgia, USA

Simplicity Prestige 30 Engine
30HP Briggs & Stratton 809cc 2-cyl gasoline
Fuel tank	4 gal (early) 15.1 L
	3.6 gal (late) 13.6 L
Engine details ...

Simplicity Prestige 30 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x2 2WD
	4x4 HFWD 4WD
Differential lock	mechanical rear
Steering	power
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electro-magnetic
Front PTO Type	pulley

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	815 lbs 369 kg
Front tire	16x6.5-8
Rear tire	24x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	16
Battery CCA	500
Battery volts	12

References
Operator's Manual Prestige Series (1757862) published in 2012
Operator's Manual Prestige Series (1756051) published in 2013
Operator's Manual Prestige Series (1757862) published in 2014

Engine

Engine Detail — 809 cc / 49.4 ci Gasoline

Manufacturer	Briggs & Stratton 49M877
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	809 cc 49.4 ci
Bore/Stroke	3.3x2.9 inches 84 x 74 mm
Power (gross)	30 hp 22.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K71

Transmission	Tuff Torq K71
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
The K71 was used on tractors with two-wheel drive.

Transmission — Tuff Torq K664

Transmission	Tuff Torq K664
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
The K664 was used on tractors with four-wheel drive.

Dimensions

Simplicity Prestige 30 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	24x12-12 (2WD)
	23x10.5-12 (4WD)

Dimensions
Wheelbase	53 inches 134 cm
Length	75 inches 190 cm
Height	50 inches 127 cm
Shipping weight	815 lbs 369 kg
Front axle	Cast-iron

Attachments

Attachment overview
46" mid-mount mower deck
50" mid-mount mower deck
52" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

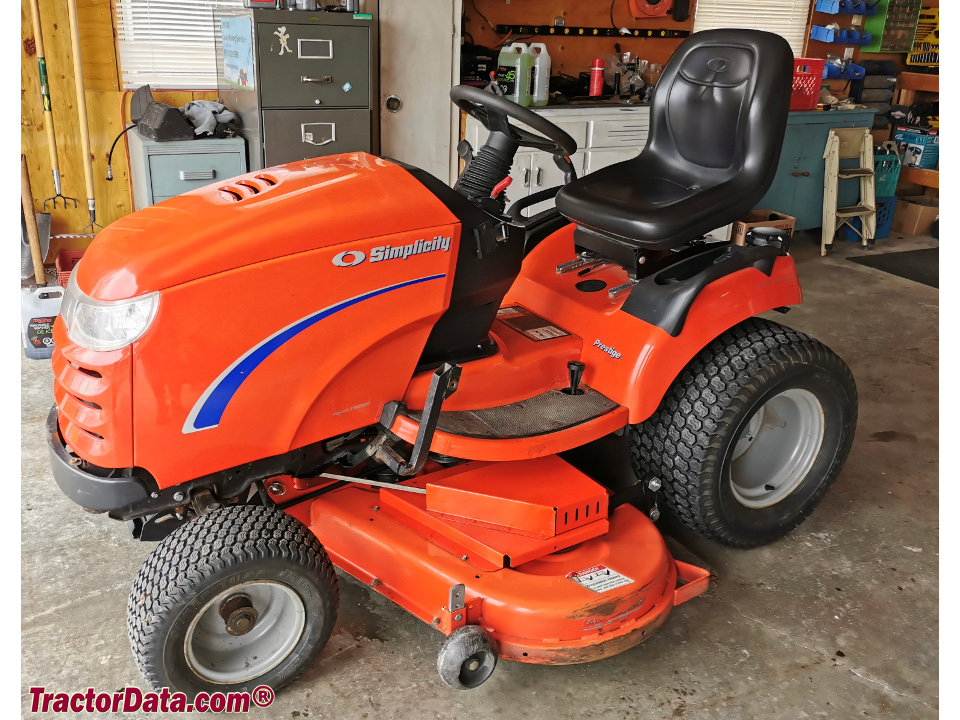

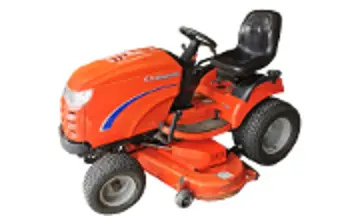

Simplicity Prestige 30 with mower deck.

Simplicity Prestige 30 with snowblower and cab.
