Simplicity Regent 17H

The Simplicity Regent 17H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Tuff Torq K56. Operating weight: 445 lbs 201 kg.

Overview

	2000 - 2004 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Original price was $3,300 in 2000

Variants
517H	similar AGCO model
2517H	similar Massey Ferguson model

Simplicity Regent 17H Engine
17HP Vanguard 501cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Simplicity Regent 17H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	445 lbs 201 kg
Front tire	15x6.5-6
Rear tire	20x8.0-8
Full dimensions and tires ...

Electrical
Charging amps	16
Battery volts	12

References
The way to a beautiful lawn. published in 2000, by Simplicity
The Way To A Beautiful Lawn published in 2003, by Simplicity
The Way To A Beautiful Lawn published in 2004, by Simplicity
Product Guide 2000 published by Simplicity
Product Guide Fall 2001 published by Simplicity
Product Guide 2003 published by Simplicity

Engine

Engine Detail — 501 cc / 30.6 ci Gasoline

Manufacturer	Vanguard 312777
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	501 cc 30.6 ci
Bore/Stroke	3.57x3.06 inches 91 x 78 mm
Power (gross)	17 hp 12.7 kW
Rated RPM	3400
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K56

Transmission	Tuff Torq K56
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 17H Tires
Lawn/turf front	15x6.5-6
Lawn/turf rear	20x8.0-8

Dimensions
Wheelbase	50 inches 127 cm
Length	68 inches 172 cm
Width	36 inches 91 cm
Height (steering wheel)	41 inches 104 cm
Weight	445 lbs 201 kg

Attachments

Attachment overview
40" mid-mount mower deck
Snowblower
Blade

40" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	40 inches 101 cm
Overall width	42 inches 106 cm
Cut height	1 to 3.9 inch 2 to 9 cm

Photos

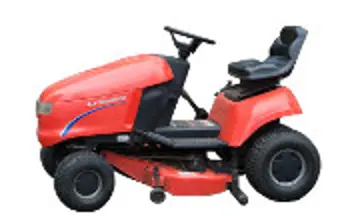

Simplicity Regent 17H tractor photo
