TYM T1104

The TYM T1104 is a tractor produced by Tym. It is equipped with a 208 ci 3.4 L engine. The listed engine power is Diesel (gross): 105 hp / 78.3 kW. Transmission: 32 forward and reverse. Operating weight: 8666 lbs 3930 kg.

Engine Power
Diesel (gross): 105 hp / 78.3 kW
Fuel & Capacities
29.1 gal 110.1 L
Transmission
32 forward and reverse
Operating Weight
8666 lbs 3930 kg

Overview

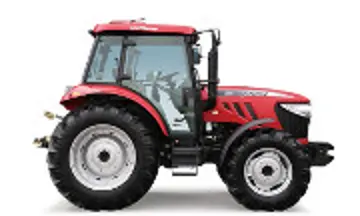

TYM T1104 tractor photo
2019 - Utility tractor
2019 -
Utility tractor
Production
Manufacturer
TYM
Utility tractor
TYM T1104 Engine
Doosan 3.4L 4-cyl diesel
Fuel tank
29.1 gal 110.1 L
Exhaust fluid (DEF)
5.3 gal 20.1 L
Engine details ...
TYM T1104 Transmission
32-speed power shuttle
Transmission details ...
TYM T1104 Power
Engine (gross)
105 hp 78.3 kW
PTO (claimed)
95.5 hp 71.2 kW
Mechanical
Power steering
Wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Type
open center
Pump flow
15.6 gpm 59.0 lpm
Total flow
22.7 gpm 85.9 lpm
Steering flow
7.1 gpm 26.9 lpm
Tractor hitch
Rear Type
II
Rear lift (at ends)
6860 lbs 3111 kg
Rear lift (at 24"/610mm)
5490 lbs 2490 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000 (1.375)
Dimensions & Tires
Wheelbase
90.6 inches 230 cm
Weight
8666 lbs 3930 kg
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
110
Battery volts
12

Engine

Engine Detail — 208 ci / 3.4 L Diesel

Manufacturer
Doosan DK03-LEA04
Configuration
turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
208 ci 3.4 L
Power (gross)
105 hp 78.3 kW
Fuel system
common rail direct injection
Air cleaner
dry
Rated RPM
2300
Starter
electric
Starter volts
12
Coolant capacity
16.9 qts 16.0 L

Transmission

Transmission — 32 forward and reverse power shuttle

Type
power shuttle
Gears
32 forward and reverse
Clutch
wet disc
Oil capacity
79.3 qts 75.0 L

Dimensions

TYM T1104 Tires
Dimensions
Wheelbase
90.6 inches 230 cm
Length
165.4 inches 420 cm
Width
86 inches 218 cm
Height (cab)
107 inches 271 cm
Weight
8666 lbs 3930 kg
Ground clearance
18.3 inches 46 cm

Photos

TYM T1104

TYM T1104

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T1104 based on its 105 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)Heavy DutyHeavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing
10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼Heavy DutyWide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机Heavy DutyHigh density baling; requires minimum 85 PTO HP.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T1104.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (29.1 gal / 110.2 L).

Estimated 75% Load Fuel Burn~5.5 gal/hr (20.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T1104 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T1104.

Converted Equivalents:

Horsepower (HP)105 hp
Kilowatts (kW)78.3 kW
Metric Horsepower (PS / CV)106.5 PS
