TYM T194
The TYM T194 is a tractor produced by Tym. It is equipped with a 60.6 ci 1.0 L engine. The listed engine power is Diesel (gross): 19 hp / 14.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 176 lbs 79 kg.
Engine Power
Diesel (gross): 19 hp / 14.2 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
176 lbs
79 kg
Overview
![]() | 2017 - 2019
Sub-Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Sub-Compact Utility tractor | |
TYM T194 Engine | |
|---|---|
Yanmar 1.0L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ... | |
TYM T194 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
TYM T194 Power | |
|---|---|
Engine (gross) | 19 hp
14.2 kW |
Mechanical | |
|---|---|
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 4.17 gpm
15.8 lpm |
Total flow | 6.97 gpm
26.4 lpm |
Steering flow | 2.11 gpm
8.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1100 lbs
498 kg |
Rear lift (at 24"/610mm) | 679 lbs
307 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Mid PTO Type | 2500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.1 inches
134 cm |
Weight | 1433 lbs
650 kg |
Front tire | 16x7.50-9 |
Rear tire | 24x12.00-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 40 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
T194HST, T234HST, T254/T254HST published in 2016, by TYM | |
Operator's Manual for Tractor T194 published in 2017 |
Engine
Engine Detail — 60.6 ci / 1.0 L Diesel
Manufacturer | Yanmar 3TNV74F |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 60.6 ci
1.0 L |
Bore/Stroke | 2.91x3.03 inches
74 x 77 mm |
Power (gross) | 19 hp
14.2 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Rated RPM | 3000 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.1 qts
2.0 L |
Coolant capacity | 3.7 qts
3.5 L |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 14.3 qts
13.5 L |
Dimensions
TYM T194 Tires | |
|---|---|
Standard tires (ag) | Front: 16x7.50-9. Rear: 24x12.00-12 |
Lawn/turf front | 16x7.50-8 |
Lawn/turf rear | 16x12.00-12 |
Dimensions | |
|---|---|
Wheelbase | 53.1 inches
134 cm |
Length | 94.2 inches
239 cm |
Width | 44.5 inches
113 cm |
Height (ROPS) | 86.6 inches
219 cm |
Weight | 1433 lbs
650 kg |
Ground clearance | 8.3 inches
21 cm |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Front-end loader |
48" Mower deck | |
|---|---|
Type | mid-mount TYM MM48 |
3-blade | |
Cutting width | 48 inches
121 cm |
Weight | 176 lbs
79 kg |
Overall width | 60.5 inches
153 cm |
Cut height | 1 to 4 inch
2 to 10 cm |

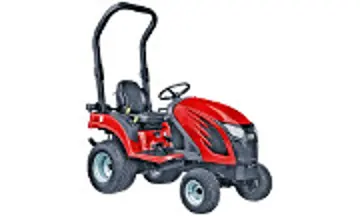

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T194 based on its 19 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T194.
Estimated Continuous Field Runtime: 6.7 hrs
Approximately 6.7 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T194 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T194.
Converted Equivalents:
Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS
