TYM T234
The TYM T234 is a tractor produced by Tym. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (gross): 24.4 hp / 18.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 787 lbs 356 kg.
Engine Power
Diesel (gross): 24.4 hp / 18.2 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
787 lbs
356 kg
Overview
![]() | 2015 - 2019
Sub-Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Sub-Compact Utility tractor | |
TYM T234 Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ... | |
TYM T234 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
TYM T234 Power | |
|---|---|
Engine (gross) | 24.4 hp
18.2 kW |
PTO (claimed) | 18.3 hp
13.6 kW |
Mechanical | |
|---|---|
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 4.4 gpm
16.7 lpm |
Total flow | 6.7 gpm
25.4 lpm |
Steering flow | 2.3 gpm
8.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1534 lbs
695 kg |
Rear lift (at 24"/610mm) | 1102 lbs
499 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Weight | 1907 lbs
865 kg |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 50 |
Battery volts | 12 |

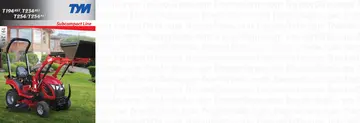

References | |
|---|---|
![]() | |
T194HST, T234HST, T254/T254HST published in 2016, by TYM | |
T234 published in 2015, by TYM |
Engine
Engine Detail — 80.4 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.4 ci
1.3 L |
Bore/Stroke | 3.071x3.622 inches
78 x 92 mm |
Power (gross) | 24.4 hp
18.2 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 4.5 qts
4.3 L |
Coolant capacity | 5.9 qts
5.6 L |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 18 qts
17.0 L |
Dimensions
TYM T234 Tires | |
|---|---|
Industrial front | 23x8.5-12 |
Industrial rear | 12x16.5 |
Dimensions | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Length | 107.8 inches
273 cm |
Width | 52.8 inches
134 cm |
Height (ROPS) | 89.8 inches
228 cm |
Weight | 1907 lbs
865 kg |
Ground clearance | 7.7 inches
19 cm |
Attachments
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
Front-end loader | |
Backhoe |
60" Mower deck | |
|---|---|
Type | mid-mount TYM MM60 |
3-blade | |
Cutting width | 60 inches
152 cm |
Weight | 272 lbs
123 kg |
Cut height | 1 to 4 inch
2 to 10 cm |
TYM BY200 Backhoe | |
|---|---|
Backhoe type | TYM BY200 Backhoe |
Weight | 787 lbs
356 kg |
Transport height | 73.1 inches
185 cm |
2-Foot flat digging depth | 76.3 inches
193 cm |
Reach from pivot | 105.4 inches
267 cm |
Loading height | 63.6 inches
161 cm |
Bucket Rotation | 172° |
Swing Arc | 180° |
Bucket force | 2877 lbs
1305 kg |
Dipperstick force | 1748 lbs
792 kg |

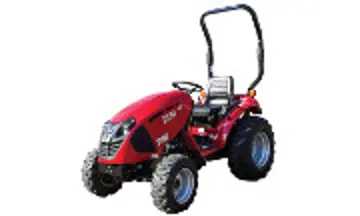

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T234 based on its 24.4 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T234.
Estimated Continuous Field Runtime: 5.2 hrs
Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T234 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T234.
Converted Equivalents:
Horsepower (HP)24.4 hp
Kilowatts (kW)18.2 kW
Metric Horsepower (PS / CV)24.7 PS
