TYM T273
The TYM T273 is a tractor produced by Tym. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (listed): 27 hp / 20.1 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1,654 lbs 750 kg.
Engine Power
Diesel (listed): 27 hp / 20.1 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
1,654 lbs
750 kg
Overview
 | 2006 - ????
Compact Utility tractor |
|---|---|
2006 - ???? | |
Compact Utility tractor | |
2006 - ???? | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
TYM T273 Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ...  | |
TYM T273 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
TYM T273 Power | |
|---|---|
Engine | 27 hp
20.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. | |
Hydraulics | |
|---|---|
Valves | 1 |
Pump flow | 5.0 gpm
18.9 lpm |
Total flow | 7.6 gpm
28.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 1,653 lbs
749 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Mid PTO | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Weight | 1,654 lbs
750 kg |
Front tire | 6-14 |
Rear tire | 11.2-20 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 50 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual LT200 Loader (LTS16-01200) published in 2005 |
Engine
| 2006 - ????
Compact Utility tractor |
|---|---|
2006 - ???? | |
Compact Utility tractor | |
2006 - ???? | |
|---|---|
Compact Utility tractor |
Engine Detail — 80.4 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.4 ci
1.3 L |
Power | 27 hp
20.1 kW |
Rated RPM | 2700 |
Starter volts | 12 |
Transmission
| 2006 - ????
Compact Utility tractor |
|---|---|
2006 - ???? | |
Compact Utility tractor | |
2006 - ???? | |
|---|---|
Compact Utility tractor |
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Dimensions
| 2006 - ????
Compact Utility tractor |
|---|---|
2006 - ???? | |
Compact Utility tractor | |
2006 - ???? | |
|---|---|
Compact Utility tractor |
TYM T273 Tires | |
|---|---|
Ag front | 6-14 |
Ag rear | 11.2-20 |
Lawn/turf front | 23x8.50-12 |
Lawn/turf rear | 12-16.5 |
Industrial front | 23x8.50-12 |
Industrial rear | 12-16.5 |
Dimensions | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Length | 92.1 inches
233 cm |
Width | 49 inches
124 cm |
Height | 79.5 inches
201 cm |
Weight | 1,654 lbs
750 kg |
Ground clearance | 12.6 inches
32 cm |
Attachments
| 2006 - ????
Compact Utility tractor |
|---|---|
2006 - ???? | |
Compact Utility tractor | |
2006 - ???? | |
|---|---|
Compact Utility tractor |
Attachment overview | |
|---|---|
TYM LT200 loader | |
TYM TX2000 loader |
Photos

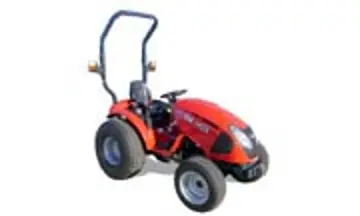

TYM T273 tractor photo
Tym T273 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T273.
Converted Equivalents:
Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS
