TYM T290

The TYM T290 is a tractor produced by Tym. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (listed): 31 hp / 23.1 kW. Transmission: 12 forward and reverse. Operating weight: 3064 lbs 1389 kg.

Engine Power
Diesel (listed): 31 hp / 23.1 kW
Fuel & Capacities
7.5 gal 28.4 L
Transmission
12 forward and reverse
Operating Weight
3064 lbs 1389 kg

Overview

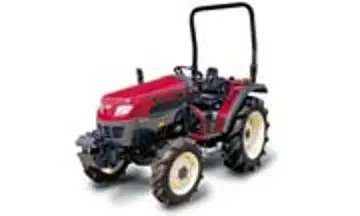

TYM T290 tractor photo
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
Built in South Korea
TYM T290 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank
7.5 gal 28.4 L
Engine details ...
TYM T290 Transmission
12-speed synchromesh
Transmission details ...
TYM T290 Power
Engine
31 hp 23.1 kW
Mechanical
Four-wheel drive
Differential lock
standard
Steering
power
Wet disc brakes
Two-post ROPS.
Tractor hitch
Rear Type
I
Control
position and draft control
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540 (1.375)
Engine RPM
540@2541
Dimensions & Tires
Wheelbase
64 inches 162 cm
Weight
3064 lbs 1389 kg
Front tire
7-16
Rear tire
11.2-24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
50
Battery volts
12

Engine

TYM T290 tractor photo
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer
Kubota D1503
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
91.5 ci 1.5 L
Bore/Stroke
3.26x3.64 inches 83 x 92 mm
Power
31 hp 23.1 kW
Air cleaner
dry
Compression
23:1
Rated RPM
2800
Idle RPM
850-3000
Firing order
1-2-3
Starter
electric
Starter volts
12

Transmission

TYM T290 tractor photo
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor

Transmission — 12 forward and reverse synchromesh

Type
synchromesh
Gears
12 forward and reverse
Clutch
dry disc

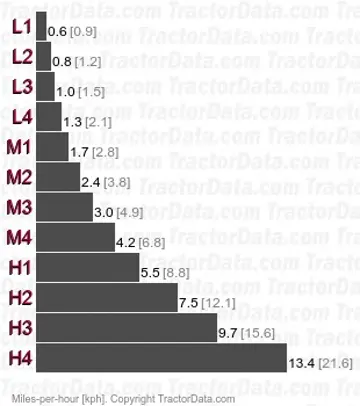

T290  synchromesh speeds

Dimensions

TYM T290 tractor photo
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor
TYM T290 Tires
Ag front
7-16
Ag rear
11.2-24
Dimensions
Wheelbase
64 inches 162 cm
Length
129 inches 327 cm
Width
52 inches 132 cm
Height (ROPS)
92 inches 233 cm
Weight
3064 lbs 1389 kg
Ground clearance
13 inches 33 cm
Front tread
42 inches 106 cm
Rear tread
42 to 58 inches 106 to 147 cm

Photos

TYM T290 tractor photo

TYM T290 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T290 based on its 31 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T290.

Estimated Continuous Field Runtime: 4.7 hrs

Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (7.5 gal / 28.4 L).

Estimated 75% Load Fuel Burn~1.6 gal/hr (6.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T290 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T290.

Converted Equivalents:

Horsepower (HP)31 hp
Kilowatts (kW)23.1 kW
Metric Horsepower (PS / CV)31.4 PS

Direct Competitor Comparison

Compare TYM T290 against same-era industry alternatives in the same horsepower class.

Current Model
Tym

TYM T290

Engine Power:Diesel (listed): 31 hp / 23.1 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 140

Engine Power:28
Production Years:1958 - 1979
Massey FergusonMarket Competitor

Massey Ferguson 22-28GC

Engine Power:28
Production Years:2007 - 2009
DeereMarket Competitor

Deere 870

Engine Power:28
Production Years:1989 - 1998
New HollandMarket Competitor

New Holland Boomer 1030

Engine Power:28
Production Years:2008 - 2008
