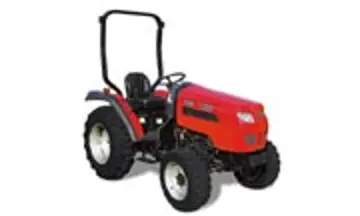

TYM T300
The TYM T300 is a tractor produced by Tym. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (gross): 30 hp / 22.4 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1069 lbs 484 kg.
Engine Power
Diesel (gross): 30 hp / 22.4 kW
Fuel & Capacities
7.3 gal
27.6 L
Transmission
9 forward and 3 reverse
Operating Weight
1069 lbs
484 kg
Overview
![]() | 2009 - ????
300 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
300 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
300 Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
TYM T300 Engine | |
|---|---|
Mitsubishi 1.5L 4-cyl diesel | |
Engine details ... |
TYM T300 Transmission | |
|---|---|
9-speed mechanical gear | |
Transmission details ... |
TYM T300 Power | |
|---|---|
Engine (gross) | 30 hp
22.4 kW |
PTO (claimed) | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. | |
Capacity | |
|---|---|
Fuel | 7.3 gal
27.6 L |
Hydraulic system | 8.7 gal
32.9 L |
Front axle | 2.2 qts
2.1 L |
Hydraulics | |
|---|---|
Type | dual gear pump |
Capacity | 8.7 gal
32.9 L |
Pump flow | 6.3 gpm
23.8 lpm |
Total flow | 10.6 gpm
40.1 lpm |
Steering flow | 4.3 gpm
16.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Control | position control |
Rear lift (at ends) | 2646 lbs
1200 kg |
Rear lift (at 24"/610mm) | 1764 lbs
800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 64.5 inches
163 cm |
Weight | 3065 lbs
1390 kg |
Front tire | 7.0-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Charging volts | 12 |
Battery volts | 12 |
References | |
|---|---|
![]() | |

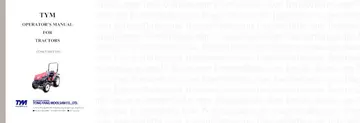

Operator's Manual for T290/T300/T330 (1350-912-002-0) published in 2005 |
Engine
![]() | 2009 - ????
300 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
300 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
300 Series | |
Compact Utility tractor |
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Mitsubishi S4L |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Power (gross) | 30 hp
22.4 kW |
Fuel system | indirect injection |
Air cleaner | dual dry element |
Rated RPM | 2700 |
Starter volts | 12 |
Oil capacity | 6 qts
5.7 L |
Coolant capacity | 7.4 qts
7.0 L |
Transmission
![]() | 2009 - ????
300 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
300 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
300 Series | |
Compact Utility tractor |
Transmission — 9 forward and 3 reverse mechanical gear
Type | mechanical gear |
Gears | 9 forward and 3 reverse |
Clutch | single dry disc |
Oil capacity | 34.8 qts
32.9 L |
![]() | |
Dimensions
![]() | 2009 - ????
300 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
300 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
300 Series | |
Compact Utility tractor |
TYM T300 Tires | |
|---|---|
Ag front | 7.0-16 |
Ag rear | 11.2-24 |
Industrial front | 27x10.5-15 |
Industrial rear | 12.5x20 |
Dimensions | |
|---|---|
Wheelbase | 64.5 inches
163 cm |
Length | 119.3 inches
303 cm |
Width | 53.5 inches
135 cm |
Height (ROPS) | 94.5 inches
240 cm |
Weight | 3065 lbs
1390 kg |
Ground clearance | 12.8 inches
32 cm |
Attachments
![]() | 2009 - ????
300 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
300 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
300 Series | |
Compact Utility tractor |
Attachment overview | |
|---|---|
Front-end loader | |
Backhoe |
TYM BT300 Backhoe | |
|---|---|
Backhoe type | TYM BT300 Backhoe |
Weight | 1069 lbs
484 kg |
2-Foot flat digging depth | 89.7 inches
227 cm |
Reach from pivot | 125.1 inches
317 cm |
Loading height | 72.4 inches
183 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 3057 lbs
1386 kg |
Dipperstick force | 1571 lbs
712 kg |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T300 based on its 30 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T300.
Estimated Continuous Field Runtime: 4.7 hrs
Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (7.3 gal / 27.6 L).
Estimated 75% Load Fuel Burn~1.6 gal/hr (5.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T300 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T300.
Converted Equivalents:
Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS
Direct Competitor Comparison
Compare TYM T300 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T300
Engine Power:Diesel (gross): 30 hp / 22.4 kW
★ Baseline Reference
