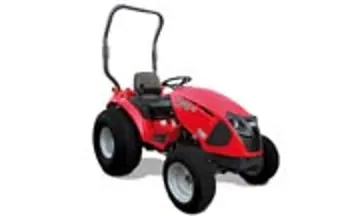

TYM T293
The TYM T293 is a tractor produced by Tym. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (gross): 29 hp / 21.6 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 787 lbs 356 kg.
Engine Power
Diesel (gross): 29 hp / 21.6 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
787 lbs
356 kg
Overview
![]() | 2009 - ????
200 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
200 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
200 Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
TYM T293 Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Engine details ... |
TYM T293 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
TYM T293 Power | |
|---|---|
Engine (gross) | 29 hp
21.6 kW |
PTO (claimed) | 21.8 hp
16.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. Cab optional. | |
Capacity | |
|---|---|
Fuel | 6.6 gal
25.0 L |
Hydraulic system | 9.5 gal
36.0 L |
Front axle | 8.6 qts
8.1 L |
Hydraulics | |
|---|---|
Type | dual gear pump |
Capacity | 9.5 gal
36.0 L |
Valves | 1 |
Pump flow | 5.2 gpm
19.7 lpm |
Total flow | 7.8 gpm
29.5 lpm |
Steering flow | 2.6 gpm
9.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Control | position control |
Rear lift (at ends) | 1534 lbs
695 kg |
Rear lift (at 24"/610mm) | 1102 lbs
499 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Weight | 1980 lbs
898 kg |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Charging volts | 12 |
Battery volts | 12 |
Engine
![]() | 2009 - ????
200 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
200 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
200 Series | |
Compact Utility tractor |
Engine Detail — 80.4 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.4 ci
1.3 L |
Power (gross) | 29 hp
21.6 kW |
Fuel system | indirect injection |
Air cleaner | dual dry element |
Rated RPM | 2800 |
Starter volts | 12 |
Oil capacity | 6 qts
5.7 L |
Coolant capacity | 9.3 qts
8.8 L |
Transmission
![]() | 2009 - ????
200 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
200 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
200 Series | |
Compact Utility tractor |
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 38 qts
36.0 L |
![]() | |
Dimensions
![]() | 2009 - ????
200 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
200 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
200 Series | |
Compact Utility tractor |
TYM T293 Tires | |
|---|---|
Industrial front | 25x8.5-14 |
Industrial rear | 14x17.5 |
Dimensions | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Length | 107.8 inches
273 cm |
Width | 56.3 inches
143 cm |
Height (ROPS) | 91.7 inches
232 cm |
ROPS Weight | 1980 lbs
898 kg |
Ground clearance | 9.8 inches
24 cm |
Attachments
![]() | 2009 - ????
200 SeriesCompact Utility tractor |
|---|---|
2009 - ???? | |
200 Series | |
Compact Utility tractor | |
2009 - ???? | |
|---|---|
200 Series | |
Compact Utility tractor |
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
TYM LT250 loader | |
TYM TX2000 loader | |
Backhoe |
60" Mower deck | |
|---|---|
Type | mid-mount TYM TMB60 |
Cutting width | 60 inches
152 cm |
TYM BT200 Backhoe | |
|---|---|
Backhoe type | TYM BT200 Backhoe |
Weight | 787 lbs
356 kg |
2-Foot flat digging depth | 76.3 inches
193 cm |
Reach from pivot | 113.1 inches
287 cm |
Loading height | 63.6 inches
161 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 2846 lbs
1290 kg |
Dipperstick force | 1592 lbs
722 kg |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T293 based on its 29 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T293.
Estimated Continuous Field Runtime: 4.4 hrs
Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).
Estimated 75% Load Fuel Burn~1.5 gal/hr (5.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T293 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T293.
Converted Equivalents:
Horsepower (HP)29 hp
Kilowatts (kW)21.6 kW
Metric Horsepower (PS / CV)29.4 PS
Direct Competitor Comparison
Compare TYM T293 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T293
Engine Power:Diesel (gross): 29 hp / 21.6 kW
★ Baseline Reference
