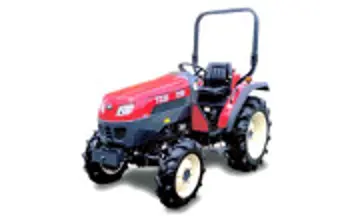

TYM T330

The TYM T330 is a tractor produced by Tym. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (listed): 31 hp / 23.1 kW. Transmission: infinite forward and reverse. Operating weight: 3000 lbs 1360 kg.

Overview

	2002 - 2009 Compact Utility tractor
2002 - 2009
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor
Built in South Korea

TYM T330 Engine
Kubota 1.5L 3-cyl diesel
Engine details ...

TYM T330 Power
Engine	31 hp 23.1 kW
PTO (claimed)	26.5 hp 19.8 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	8.2 gal 31.0 L
Hydraulic system	8.5 gal 32.2 L

Hydraulics
Type	open center
Capacity	8.5 gal 32.2 L
Valves	2
Pump flow	6.3 gpm 23.8 lpm
Total flow	9.7 gpm 36.7 lpm
	10.85 gpm (hydro) 41.1 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2078 lbs 942 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2541

Dimensions & Tires
Wheelbase	64 inches 162 cm
Weight	3000 lbs 1360 kg
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Battery volts	12

References
Operator's Manual for T290/T300/T330 (1350-912-002-0) published in 2005

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota D1503
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.26x3.64 inches 83 x 92 mm
Power	31 hp 23.1 kW
Air cleaner	dry
Compression	23:1
Rated RPM	2800
Idle RPM	850-3000
Firing order	1-2-3
Starter	electric
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	7.4 qts 7.0 L

Transmission

Transmission options
12-speed sync shuttle
hydrostatic

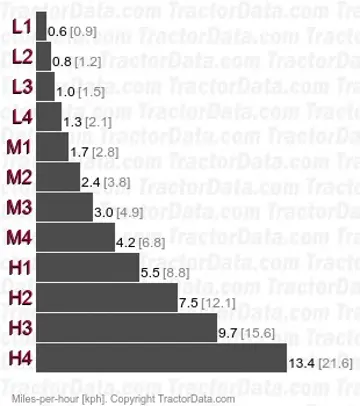

Transmission — 12 forward and reverse sync shuttle

Type	sync shuttle
Gears	12 forward and reverse

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

TYM T330 Tires
Ag front	7-16
Ag rear	11.2-24

Dimensions
Wheelbase	64 inches 162 cm
Length	121 inches 307 cm
Width	52 inches 132 cm
Height (ROPS)	93 inches 236 cm
Weight	3000 lbs 1360 kg
Ground clearance	12 inches 30 cm

Photos

TYM T330 with LT300H front-end loader.
