TYM T302

The TYM T302 is a tractor produced by Tym. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (listed): 30 hp / 22.4 kW. Transmission: 12 forward and reverse. Operating weight: 3064 lbs 1389 kg.

Engine Power
Diesel (listed): 30 hp / 22.4 kW
Fuel & Capacities
8.7 gal 32.9 L
Transmission
12 forward and reverse
Operating Weight
3064 lbs 1389 kg

Overview

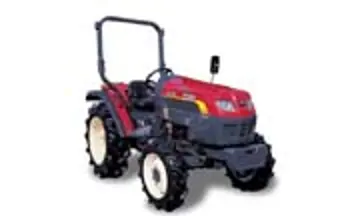

TYM T302 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
Built in South Korea
TYM T302 Engine
Mitsubishi 1.5L 4-cyl diesel
Fuel tank
8.7 gal 32.9 L
Engine details ...
TYM T302 Transmission
12-speed
Transmission details ...
TYM T302 Power
Engine
30 hp 22.4 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Disc brakes
Two-post ROPS.
Power Take-off (PTO)
Rear PTO Type
550/727/1013
Dimensions & Tires
Wheelbase
64.6 inches 164 cm
Weight
3064 lbs 1389 kg
Front tire
7-16
Rear tire
11.2-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer
Mitsubishi
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
91.5 ci 1.5 L
Power
30 hp 22.4 kW
Rated RPM
2700
Starter
electric
Starter volts
12

Transmission

Transmission — 12 forward and reverse

Gears
12 forward and reverse

Dimensions

TYM T302 Tires
Standard tires (ag)
Front: 7-16. Rear: 11.2-24
Dimensions
Wheelbase
64.6 inches 164 cm
Length
129.4 inches 328 cm
Width
51.8 inches 131 cm
Height (ROPS)
93.2 inches 236 cm
Weight
3064 lbs 1389 kg
Ground clearance
12.2 inches 30 cm

Photos

TYM T302 tractor photo

TYM T302 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T302 based on its 30 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T302.

Estimated Continuous Field Runtime: 5.6 hrs

Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (8.7 gal / 32.9 L).

Estimated 75% Load Fuel Burn~1.6 gal/hr (5.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T302 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T302.

Converted Equivalents:

Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS

Direct Competitor Comparison

Compare TYM T302 against same-era industry alternatives in the same horsepower class.

Current Model
Tym

TYM T302

Engine Power:Diesel (listed): 30 hp / 22.4 kW
★ Baseline Reference
CaseIHMarket Competitor

CaseIH 1140

Engine Power:27
Production Years:1991 - 1991
Massey FergusonMarket Competitor

Massey Ferguson 1230

Engine Power:27
Production Years:1993 - 2002
DeereMarket Competitor

Deere 4210

Engine Power:27
Production Years:2002 - 2004
KubotaMarket Competitor

Kubota B2710

Engine Power:27
Production Years:2000 - 2005
