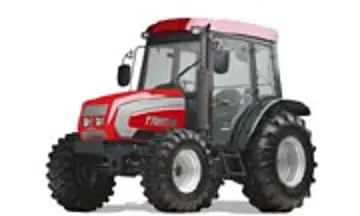

TYM T700
The TYM T700 is a tractor produced by Tym. It is equipped with a 177.6 ci 2.9 L engine. The listed engine power is Diesel (listed): 70 hp / 52.2 kW. Transmission: 16 forward and reverse. Operating weight: 6,660 lbs 3020 kg.
Engine Power
Diesel (listed): 70 hp / 52.2 kW
Fuel & Capacities
27.9 gal
105.6 L
Transmission
16 forward and reverse
Operating Weight
6,660 lbs
3020 kg
Overview
![]() | 2002 - 2009
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Utility tractor | |
TYM T700 Engine | |
|---|---|
John Deere 2.9L 3-cyl diesel | |
Engine details ... |
TYM T700 Transmission | |
|---|---|
16-speed sync shuttle | |
Transmission details ... |
TYM T700 Power | |
|---|---|
Engine | 70 hp
52.2 kW |
PTO (claimed) | 63.5 hp
47.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard. | |
Capacity | |
|---|---|
Fuel | 27.9 gal
105.6 L |
Hydraulic system | 11.9 gal
45.0 L |
Hydraulics | |
|---|---|
Capacity | 11.9 gal
45.0 L |
Rear valves | 3 |
Front valves | 1 |
Pump flow | 10.54 gpm
39.9 lpm |
Total flow | 15.67 gpm
59.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 4,329 lbs
1963 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/750 |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.2 inches
211 cm |
Weight | 6,660 lbs
3020 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 50 |
Battery volts | 12 |
Engine
Engine Detail — 177.6 ci / 2.9 L Diesel
Manufacturer | John Deere 3029DF |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 177.6 ci
2.9 L |
Power | 70 hp
52.2 kW |
Rated RPM | 2500 |
Starter volts | 12 |
Oil capacity | 9 qts
8.5 L |
Coolant capacity | 9.8 qts
9.3 L |
Transmission
Transmission — 16 forward and reverse sync shuttle
Type | sync shuttle |
Gears | 16 forward and reverse |
Dimensions
TYM T700 Tires | |
|---|---|
Ag front | 11.2-24 |
Ag rear | 16.9-30 |
Dimensions | |
|---|---|
Wheelbase | 83.2 inches
211 cm |
Length | 159.4 inches
404 cm |
Width | 77.1 inches
195 cm |
Height | 102.3 inches
259 cm |
Weight | 6,660 lbs
3020 kg |
Ground clearance | 17.7 inches
44 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T700 based on its 70 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T700.
Estimated Continuous Field Runtime: 7.7 hrs
Approximately 7.7 hours of continuous field operation at ~75% rated power on a full tank (27.9 gal / 105.6 L).
Estimated 75% Load Fuel Burn~3.6 gal/hr (13.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T700 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T700.
Converted Equivalents:
Horsepower (HP)70 hp
Kilowatts (kW)52.2 kW
Metric Horsepower (PS / CV)71 PS
Direct Competitor Comparison
Compare TYM T700 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T700
Engine Power:Diesel (listed): 70 hp / 52.2 kW
★ Baseline Reference
