TYM T723
The TYM T723 is a tractor produced by Tym. It is equipped with a 201 ci 3.3 L engine. The listed engine power is Diesel (gross): 74 hp / 55.2 kW. Transmission: 24 forward and reverse. Operating weight: 5771 lbs 2617 kg.
Engine Power
Diesel (gross): 74 hp / 55.2 kW
Fuel & Capacities
19 gal
71.9 L
Transmission
24 forward and reverse
Operating Weight
5771 lbs
2617 kg
Overview
![]() | 2010 -
Utility tractor |
|---|---|
2010 - | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | TYM |
Utility tractor | |
TYM T723 Engine | |
|---|---|
Perkins 3.3L 3-cyl diesel | |
Engine details ... |
TYM T723 Power | |
|---|---|
Engine (gross) | 74 hp
55.2 kW |
PTO (claimed) | 65 hp
48.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard with heat and air-conditioning. | |
Capacity | |
|---|---|
Fuel | 19 gal
71.9 L |
Hydraulic system | 12.4 gal
46.9 L |
Front axle | 17.2 qts
16.3 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 12.4 gal
46.9 L |
Valves | 3 |
Pump flow | 11.1 gpm
42.0 lpm |
Total flow | 15.9 gpm
60.2 lpm |
Steering flow | 4.8 gpm
18.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | 2 |
Control | position and draft control |
Rear lift (at ends) | 4330 lbs
1964 kg |
Rear lift (at 24"/610mm) | 3333 lbs
1511 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2200 |
540E@1584 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.2 inches
211 cm |
Weight | 5771 lbs
2617 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 75 |
Charging volts | 12 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Operator's Manual for T723 (1733-940-001-0) published in 2009 |
Engine
Engine Detail — 201 ci / 3.3 L Diesel
Manufacturer | Perkins 1103C-33T |
Configuration | turbocharged diesel, 3-cylinder, liquid-cooled |
Displacement | 201 ci
3.3 L |
Power (gross) | 74 hp
55.2 kW |
Fuel system | direct injection |
Air cleaner | dual dry element |
Rated RPM | 2200 |
Starter volts | 12 |
Oil capacity | 7.4 qts
7.0 L |
Coolant capacity | 10 qts
9.5 L |
Transmission
Transmission options | |
|---|---|
24-speed power shuttle | |
24-speed sync shuttle |
Transmission — 24 forward and reverse power shuttle
Type | power shuttle |
Gears | 24 forward and reverse |
Clutch | single dry disc |
Oil capacity | 49.6 qts
46.9 L |
Four synchronized gears in three ranges with power shuttle and creeper range. | |
![]() | |
Transmission — 24 forward and reverse sync shuttle
Type | sync shuttle |
Gears | 24 forward and reverse |
Oil capacity | 49.6 qts
46.9 L |
![]() | |
Dimensions
TYM T723 Tires | |
|---|---|
Ag front | 11.2-24 |
Ag rear | 16.9-30 |
Dimensions | |
|---|---|
Wheelbase | 83.2 inches
211 cm |
Length | 149 inches
378 cm |
Width | 77.6 inches
197 cm |
Height (cab) | 102 inches
259 cm |
Weight | 5771 lbs
2617 kg |
Ground clearance | 18.3 inches
46 cm |
Attachments
Attachment overview | |
|---|---|
TYM LT723 loader | |
TYM TX7200 loader |

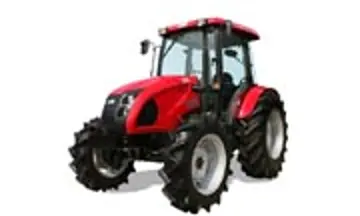

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T723 based on its 74 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T723.
Estimated Continuous Field Runtime: 4.9 hrs
Approximately 4.9 hours of continuous field operation at ~75% rated power on a full tank (19 gal / 71.9 L).
Estimated 75% Load Fuel Burn~3.8 gal/hr (14.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T723 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T723.
Converted Equivalents:
Horsepower (HP)74 hp
Kilowatts (kW)55.2 kW
Metric Horsepower (PS / CV)75 PS
