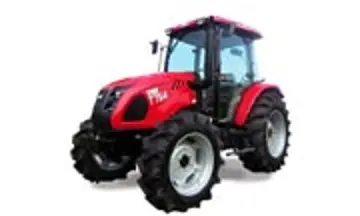

TYM T754
The TYM T754 is a tractor produced by Tym. It is equipped with a 177 ci 2.9 L engine. The listed engine power is Diesel (gross): 74 hp / 55.2 kW. Transmission: 16 forward and reverse. Operating weight: 5771 lbs 2617 kg.
Engine Power
Diesel (gross): 74 hp / 55.2 kW
Fuel & Capacities
23.8 gal
90.1 L
Transmission
16 forward and reverse
Operating Weight
5771 lbs
2617 kg
Overview
![]() | 2014 -
Utility tractor |
|---|---|
2014 - | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | TYM |
Utility tractor | |
TYM T754 Engine | |
|---|---|
Deutz 2.9L 4-cyl | |
Engine details ... |
TYM T754 Transmission | |
|---|---|
16-speed syncronized shuttle | |
Transmission details ... |
TYM T754 Power | |
|---|---|
Engine (gross) | 74 hp
55.2 kW |
PTO (claimed) | 65 hp
48.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 23.8 gal
90.1 L |
Hydraulic system | 12.4 gal
46.9 L |
Front axle | 17.2 qts
16.3 L |
Hydraulics | |
|---|---|
Type | open center dual gear pump |
Capacity | 12.4 gal
46.9 L |
Valves | 2 |
Pump flow | 11.1 gpm
42.0 lpm |
Total flow | 15.9 gpm
60.2 lpm |
Steering flow | 4.8 gpm
18.2 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/540E (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 86.1 inches
218 cm |
Weight | 5771 lbs
2617 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Charging volts | 12 |
Battery volts | 12 |
Engine
Engine Detail — 177 ci / 2.9 L Diesel
Manufacturer | Deutz TCD 2.9 |
Configuration | turbocharged, 4-cylinder, liquid-cooled |
Displacement | 177 ci
2.9 L |
Bore/Stroke | 3.6x4.3 inches
91 x 109 mm |
Emissions | Tier IV |
Emission control | exhaust gas recirculation and diesel oxidation catalyst |
Power (gross) | 74 hp
55.2 kW |
Fuel system | common rail direct injection |
Air cleaner | dual dry element |
Rated RPM | 2200 |
Torque | 221 lb-ft
299.7 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 7.4 qts
7.0 L |
Coolant capacity | 10 qts
9.5 L |
Transmission
Transmission — 16 forward and reverse syncronized shuttle
Type | syncronized shuttle |
Gears | 16 forward and reverse |
Clutch | dry disc |
Oil capacity | 49.7 qts
47.0 L |
Four gears (1-4) in four ranges (LL, low, medium, high) with mechanical left hand reverser lever. Gears shifts and shuttle shifts are synchronized, using the clutch. | |
![]() | |
Dimensions
TYM T754 Tires | |
|---|---|
Ag front | 11.2-24 |
Ag rear | 16.9-30 |
Industrial front | 15-19.5 |
Industrial rear | 18.4-24 |
Dimensions | |
|---|---|
Wheelbase | 86.1 inches
218 cm |
Length | 157.5 inches
400 cm |
Width | 73.5 inches
186 cm |
Height (ROPS) | 104.3 inches
264 cm |
Weight | 5771 lbs
2617 kg |
Ground clearance | 16.8 inches
42 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T754 based on its 74 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T754.
Estimated Continuous Field Runtime: 6.2 hrs
Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (23.8 gal / 90.1 L).
Estimated 75% Load Fuel Burn~3.8 gal/hr (14.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T754 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T754.
Converted Equivalents:
Horsepower (HP)74 hp
Kilowatts (kW)55.2 kW
Metric Horsepower (PS / CV)75 PS
