TYM TX753

The TYM TX753 is a tractor produced by Tym. It is equipped with a 199 ci 3.3 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: 24 forward and reverse. Operating weight: 6757 lbs 3064 kg.

Engine Power
Diesel (listed): 75 hp / 55.9 kW
Transmission
24 forward and reverse
Operating Weight
6757 lbs 3064 kg

Overview

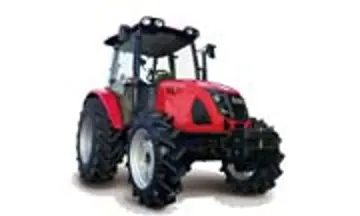

TYM TX753 tractor photo
2013 - Utility tractor
2013 -
Utility tractor
Production
Manufacturer
TYM
Utility tractor
Built in South Korea
TYM TX753 Engine
Cummins 3.3L 4-cyl diesel
Engine details ...
TYM TX753 Transmission
24-speed
Transmission details ...
TYM TX753 Power
Engine
75 hp 55.9 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Cab standard.
Power Take-off (PTO)
Rear PTO Type
540/750/1000
Dimensions & Tires
Weight
6757 lbs 3064 kg
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 199 ci / 3.3 L Diesel

Manufacturer
Cummins B3.3
Configuration
turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
199 ci 3.3 L
Bore/Stroke
3.74x4.53 inches 95 x 115 mm
Power
75 hp 55.9 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — 24 forward and reverse

Gears
24 forward and reverse

Dimensions

TYM TX753 Tires
Dimensions
Length
155.1 inches 393 cm
Width
76.4 inches 194 cm
Height (cab)
106.7 inches 271 cm
Weight
6757 lbs 3064 kg

Photos

TYM TX753 tractor photo

TYM TX753 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym TX753 based on its 75 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym TX753.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym TX753 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym TX753.

Converted Equivalents:

Horsepower (HP)75 hp
Kilowatts (kW)55.9 kW
Metric Horsepower (PS / CV)76 PS
