TYM TX1500

The TYM TX1500 is a tractor produced by Tym. It is equipped with a 402.6 ci 6.6 L engine. The listed engine power is Diesel (listed): 145 hp / 108.1 kW. Transmission: ZF. Operating weight: 12470 lbs 5656 kg.

Engine Power
Diesel (listed): 145 hp / 108.1 kW
Fuel & Capacities
66 gal 249.8 L
Transmission
ZF
Operating Weight
12470 lbs 5656 kg

Overview

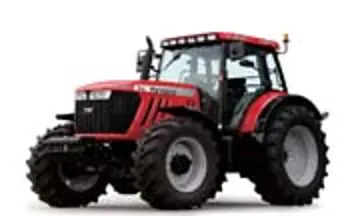

TYM TX1500 tractor photo
2013 - Row-Crop tractor
2013 -
Row-Crop tractor
Production
Manufacturer
TYM
Row-Crop tractor
Built in South Korea
TYM TX1500 Engine
Perkins 6.6L 6-cyl diesel
Fuel tank
66 gal 249.8 L
Engine details ...
TYM TX1500 Transmission
continuously variable transmission
Transmission details ...
TYM TX1500 Power
Engine
145 hp 108.1 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Cab standard.
Tractor hitch
Rear Type
III
Rear lift
12350 lbs 5601 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/750/1000/1400
Dimensions & Tires
Wheelbase
109.1 inches 277 cm
Weight
12470 lbs 5656 kg
Front tire
380/85R28
Rear tire
460/85R38
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 402.6 ci / 6.6 L Diesel

Manufacturer
Perkins
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
402.6 ci 6.6 L
Power
145 hp 108.1 kW
Rated RPM
2200
Starter
electric
Starter volts
12

Transmission

Transmission — ZF

Transmission
ZF
Type
continuously variable transmission
Gears
infinite forward and reverse

Dimensions

TYM TX1500 Tires
Standard tires (ag)
Front: 380/85R28. Rear: 460/85R38
Optional tires (ag)
Front: 420/70R28. Rear:
Front: 520/70R38. Rear:
Dimensions
Wheelbase
109.1 inches 277 cm
Length
193.7 inches 491 cm
Width
91.5 inches 232 cm
Height (cab)
113 inches 287 cm
Weight
12470 lbs 5656 kg
Ground clearance
16.9 inches 42 cm

Photos

TYM TX1500 tractor photo

TYM TX1500 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym TX1500 based on its 145 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼Heavy DutyWide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机Heavy DutyHigh density baling; requires minimum 85 PTO HP.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym TX1500.

Estimated Continuous Field Runtime: 8.8 hrs

Approximately 8.8 hours of continuous field operation at ~75% rated power on a full tank (66 gal / 249.8 L).

Estimated 75% Load Fuel Burn~7.5 gal/hr (28.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym TX1500 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym TX1500.

Converted Equivalents:

Horsepower (HP)145 hp
Kilowatts (kW)108.1 kW
Metric Horsepower (PS / CV)147 PS

Direct Competitor Comparison

Compare TYM TX1500 against same-era industry alternatives in the same horsepower class.

Current Model
Tym

TYM TX1500

Engine Power:Diesel (listed): 145 hp / 108.1 kW
★ Baseline Reference
CaseIHMarket Competitor

CaseIH MXU130 Value

Engine Power:131
Production Years:2005 - 2006
New HollandMarket Competitor

New Holland T6.160

Engine Power:131
Production Years:2012 - 2014
FendtMarket Competitor

Fendt 413 Vario

Engine Power:131.4
Production Years:2006 - 2012
KubotaMarket Competitor

Kubota M6-131

Engine Power:131.6
Production Years:2015 - 2025
