TYM T25

The TYM T25 is a tractor produced by Tym. It is equipped with a 77.3 ci 1.3 L engine. The listed engine power is Diesel (gross): 24.7 hp / 18.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 272 lbs 123 kg.

Engine Power
Diesel (gross): 24.7 hp / 18.4 kW
Fuel & Capacities
6.6 gal 25.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
272 lbs 123 kg

Overview

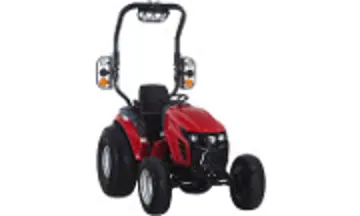

TYM T25 tractor photo
2021 - Compact Utility tractor
2021 -
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
TYM T25 Engine
Yanmar 1.3L 3-cyl diesel
Engine details ...
TYM T25 Transmission
hydrostatic
Transmission details ...
TYM T25 Power
Engine (gross)
24.7 hp 18.4 kW
PTO (claimed)
18.3 hp 13.6 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional.
Capacity
Fuel
6.6 gal 25.0 L
Hydraulic system
5.8 gal 22.0 L
Hydraulics
Type
open center
Capacity
5.8 gal 22.0 L
Rear valves
1 OptOptional
Pump flow
4.18 gpm 15.8 lpm
Total flow
6.95 gpm 26.3 lpm
Steering flow
2.77 gpm 10.5 lpm
Tractor hitch
Rear Type
I
Control
position control
Rear lift (at ends)
1534 lbs 695 kg
Rear lift (at 24"/610mm)
1102 lbs 499 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
electro-hydraulic
Rear PTO Type
540 (1.375)
Dimensions & Tires
Wheelbase
61 inches 154 cm
Weight
1881 to 2399 pounds
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
40
Battery volts
12
References
T25 references literature
T25 Sub-Compact published in 2023, by TYM

Engine

Engine Detail — 77.3 ci / 1.3 L Diesel

Manufacturer
Yanmar 3TNV80F
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
77.3 ci 1.3 L
Bore/Stroke
3.15x3.31 inches 80 x 84 mm
Power (gross)
24.7 hp 18.4 kW
Fuel system
indirect injection
Air cleaner
dry
Rated RPM
3000
Starter
electric
Starter volts
12
Oil capacity
2.9 qts 2.7 L
Coolant capacity
3.8 qts 3.6 L

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (2-range)

Dimensions

TYM T25 Tires
Lawn/turf front
23x8.50-12
Lawn/turf rear
33x12.50-16
Industrial front
23x8.50-14
Industrial rear
14-17.5
Dimensions
Wheelbase
61 inches 154 cm
Length
107.8 inches 273 cm
Width
52.8 inches 134 cm
Height (ROPS)
89.8 inches 228 cm
ROPS Weight
1881 lbs 853 kg
Cab Weight
2399 lbs 1088 kg
Ground clearance
7.7 inches 19 cm

Attachments

Attachment overview
60" mid-mount mower deck
Front-end loader
Backhoe
60" Mower deck
Type
mid-mount TYM TM60
3-blade
Cutting width
60 inches 152 cm
Weight
272 lbs 123 kg
Cut height
1 to 4 inch 2 to 10 cm
TYM TB65 Backhoe
Backhoe type
TYM TB65 Backhoe
Transport height
81.1 inches 205 cm
Bucket width
9 inches 22 cm
12 inches 30 cm
16 inches 40 cm
18 inches 45 cm
Digging depth
80.4 inches 204 cm
Reach from pivot
117.7 inches 298 cm
Loading height
63 inches 160 cm
Bucket Rotation
180°
Swing Arc
180°

Photos

TYM T25 compact utility tractor.

TYM T25 compact utility tractor.

TYM T25 compact utility tractor.

TYM T25 compact utility tractor.

TYM T25 dashboard.

TYM T25 dashboard.

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T25 based on its 24.7 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T25.

Estimated Continuous Field Runtime: 5.1 hrs

Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T25 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T25.

Converted Equivalents:

Horsepower (HP)24.7 hp
Kilowatts (kW)18.4 kW
Metric Horsepower (PS / CV)25 PS
