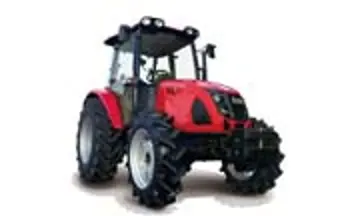

TYM TX803
The TYM TX803 is a tractor produced by Tym. It is equipped with a 199 ci 3.3 L engine. The listed engine power is Diesel (listed): 80 hp / 59.7 kW. Transmission: 24 forward and reverse.
Engine Power
Diesel (listed): 80 hp / 59.7 kW
Fuel & Capacities
29.1 gal
110.1 L
Transmission
24 forward and reverse
Overview
![]() | 2013 -
Utility tractor |
|---|---|
2013 - | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | TYM |
Utility tractor | |
Built in South Korea | |
TYM TX803 Engine | |
|---|---|
Cummins 3.3L 4-cyl diesel | |
Fuel tank | 29.1 gal
110.1 L |
Engine details ... | |
TYM TX803 Transmission | |
|---|---|
24-speed | |
Transmission details ... |
TYM TX803 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/750/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 86.6 inches
219 cm |
Front tire | 11.2-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 199 ci / 3.3 L Diesel
Manufacturer | Cummins B3.3 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 199 ci
3.3 L |
Bore/Stroke | 3.74x4.53 inches
95 x 115 mm |
Power | 80 hp
59.7 kW |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 24 forward and reverse
Gears | 24 forward and reverse |
Dimensions
TYM TX803 Tires | |
|---|---|
Standard tires (ag) | Front: 11.2-24. Rear: 16.9-30 |
Dimensions | |
|---|---|
Wheelbase | 86.6 inches
219 cm |
Length | 155.1 inches
393 cm |
Width | 76.4 inches
194 cm |
Height (cab) | 105.3 inches
267 cm |
Ground clearance | 18.5 inches
46 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym TX803 based on its 80 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym TX803.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (29.1 gal / 110.2 L).
Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym TX803 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym TX803.
Converted Equivalents:
Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
Direct Competitor Comparison
Compare TYM TX803 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM TX803
Engine Power:Diesel (listed): 80 hp / 59.7 kW
★ Baseline Reference
