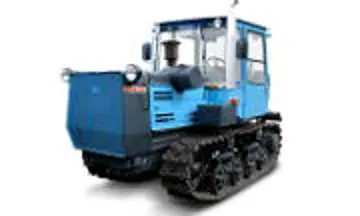

XTZ T-150-05-09-25
The XTZ T-150-05-09-25 is a tractor produced by Xtz. It is equipped with a 680.4 ci 11.2 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 9 forward and 3 reverse. Drive type: crawler. Operating weight: 18190 lbs 8250 kg.
Engine Power
Diesel (listed): 180 hp / 134.2 kW
Drive & Traction
crawler
Fuel & Capacities
Diesel
Transmission
9 forward and 3 reverse
Operating Weight
18190 lbs
8250 kg
Overview
![]() | Agricultural Crawler tractor | Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | XTZ |
Agricultural Crawler tractor | |
Built in Kharkiv, Ukraine | |
XTZ T-150-05-09-25 Engine | |
|---|---|
YaMZ 11.2L 6-cyl diesel | |
Engine details ... |
XTZ T-150-05-09-25 Transmission | |
|---|---|
9-speed | |
Transmission details ... |
XTZ T-150-05-09-25 Power | |
|---|---|
Engine | 180 hp
134.2 kW |
Mechanical | |
|---|---|
Drive | crawler |
Cab standard. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tracks | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Weight | 18190 lbs
8250 kg |
Tracks | |
Full dimensions and tracks ... | |
Engine
Engine Detail — 680.4 ci / 11.2 L Diesel
Manufacturer | YaMZ 236 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled V-6 |
Displacement | 680.4 ci
11.2 L |
Bore/Stroke | 5.12x5.51 inches
130 x 140 mm |
Power | 180 hp
134.2 kW |
Rated RPM | 2100 |
Starter type | electric |
Transmission
Transmission — 9 forward and 3 reverse
Gears | 9 forward and 3 reverse |
Clutch | dry disc |
Dimensions
XTZ T-150-05-09-25 Tracks |
|---|
Dimensions | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Length | 196.9 inches
500 cm |
Width | 77.2 inches
196 cm |
Height (cab) | 112.8 inches
286 cm |
Weight | 18190 lbs
8250 kg |
Ground clearance | 11.8 inches
29 cm |
Gauge | 56.5 inches
143 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Xtz T-150-05-09-25 based on its 180 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Xtz T-150-05-09-25.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Xtz T-150-05-09-25 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Xtz T-150-05-09-25.
Converted Equivalents:
Horsepower (HP)180 hp
Kilowatts (kW)134.2 kW
Metric Horsepower (PS / CV)182.5 PS
Direct Competitor Comparison
Compare XTZ T-150-05-09-25 against same-era industry alternatives in the same horsepower class.
Current Model
Xtz
XTZ T-150-05-09-25
Engine Power:Diesel (listed): 180 hp / 134.2 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 1486
Engine Power:162.2
Production Years:1976 - 1981
Massey FergusonMarket Competitor
Massey Ferguson 6S.165
Engine Power:162.3
Production Years:2022 - 2026
