XTZ XTZ-17022

The XTZ XTZ-17022 is a tractor produced by Xtz. It is equipped with a 435 ci 7.1 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 19180 lbs 8700 kg.

Engine Power
Diesel (listed): 180 hp / 134.2 kW
Fuel & Capacities
113.6 gal 430.0 L
Transmission
12 forward and 4 reverse
Operating Weight
19180 lbs 8700 kg

Overview

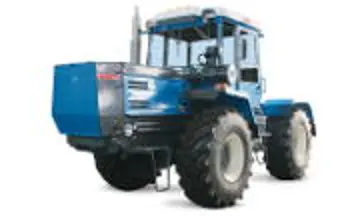

XTZ XTZ-17022 tractor photo
Four-wheel Drive (4WD) tractor
Four-wheel Drive (4WD) tractor
Production
Manufacturer
XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine
XTZ XTZ-17022 Engine
Deutz 7.1L 6-cyl diesel
Fuel tank
113.6 gal 430.0 L
Engine details ...
XTZ XTZ-17022 Transmission
12-speed
Transmission details ...
XTZ XTZ-17022 Power
Engine
180 hp 134.2 kW
Mechanical
Four-wheel drive
Final drives
planetary
Articulated power steering
Pneumatic drum brakes
Cab standard, air-conditioning available.
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
112.6 inches 286 cm
Weight
19180 lbs 8700 kg
Front tire
23.1R26
Rear tire
23.1R26
Full dimensions and tires ...

Engine

Engine Detail — 435 ci / 7.1 L Diesel

Manufacturer
Deutz BF6M1013E
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled inline
Displacement
435 ci 7.1 L
Bore/Stroke
4.252x5.512 inches 108 x 140 mm
Power
180 hp 134.2 kW
Rated RPM
2200
Starter type
electric

Transmission

Transmission — 12 forward and 4 reverse

Gears
12 forward and 4 reverse
Clutch
dry disc
Four gears in three ranges, plus reverse range.

Dimensions

XTZ XTZ-17022 Tires
Ag front
23.1R26
Ag rear
23.1R26
Dimensions
Wheelbase
112.6 inches 286 cm
Length
255.9 inches 649 cm
Width
96.9 inches 246 cm
Height (exhaust)
132.3 inches 336 cm
Weight
19180 lbs 8700 kg
Ground clearance
17.7 inches 44 cm
Front tread
73.2 inches 185 cm
Rear tread
73.2 inches 185 cm

Photos

XTZ XTZ-17022 tractor photo

XTZ XTZ-17022 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Xtz XTZ-17022 based on its 180 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Xtz XTZ-17022.

Estimated Continuous Field Runtime: 12.1 hrs

Approximately 12.1 hours of continuous field operation at ~75% rated power on a full tank (113.6 gal / 430 L).

Estimated 75% Load Fuel Burn~9.4 gal/hr (35.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Xtz XTZ-17022 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Xtz XTZ-17022.

Converted Equivalents:

Horsepower (HP)180 hp
Kilowatts (kW)134.2 kW
Metric Horsepower (PS / CV)182.5 PS

Direct Competitor Comparison

Compare XTZ XTZ-17022 against same-era industry alternatives in the same horsepower class.

Current Model
Xtz

XTZ XTZ-17022

Engine Power:Diesel (listed): 180 hp / 134.2 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 1486

Engine Power:162.2
Production Years:1976 - 1981
DeereMarket Competitor

Deere 6R 165

Engine Power:162.3
Production Years:2022 - 2026
Massey FergusonMarket Competitor

Massey Ferguson 6S.165

Engine Power:162.3
Production Years:2022 - 2026
FordMarket Competitor

Ford FW-25

Engine Power:163
Production Years:1986 - 1988
